Axel Joost Elektronik, B-Box Brain Box
2830 kr
- Översikt
- Passar till
Ge ditt omdöme
Artikelnummer: 954136
Leveranstid:
Frakt:
Axel Joost Elektronik, B-Box brain box

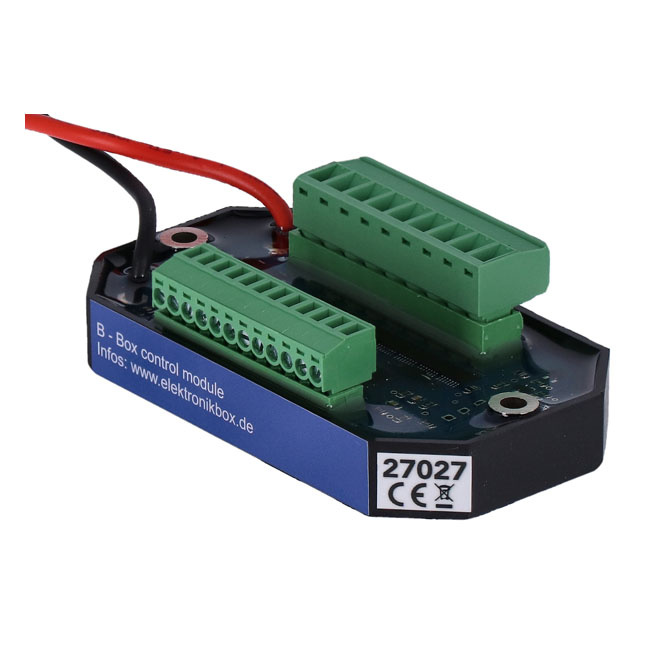

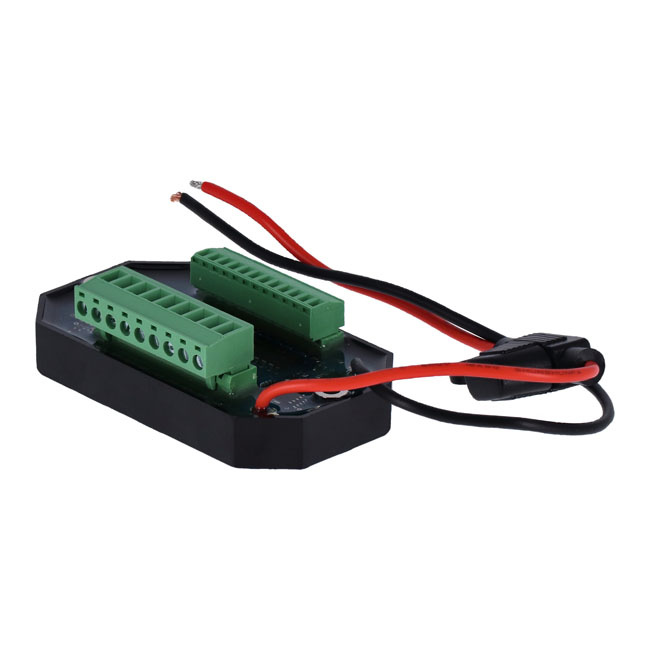

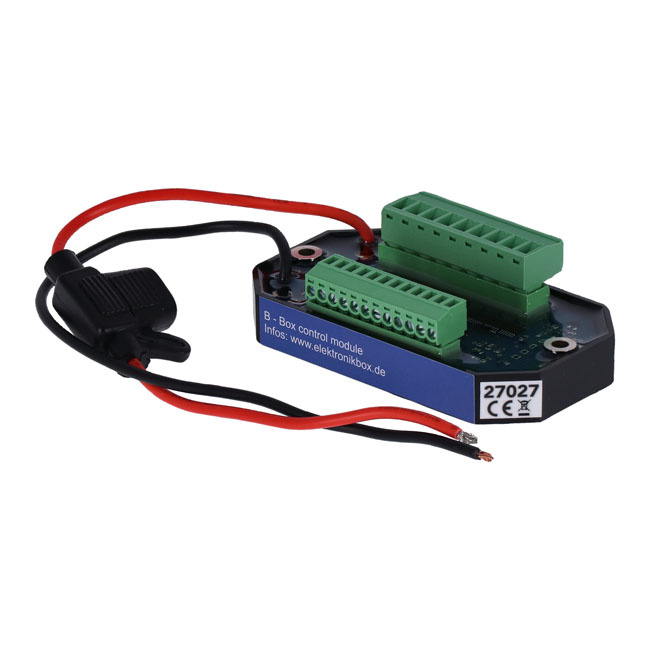

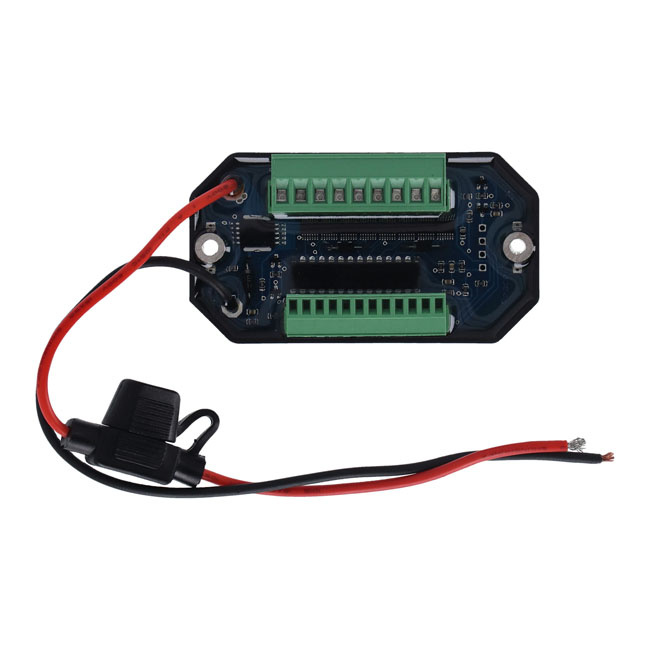

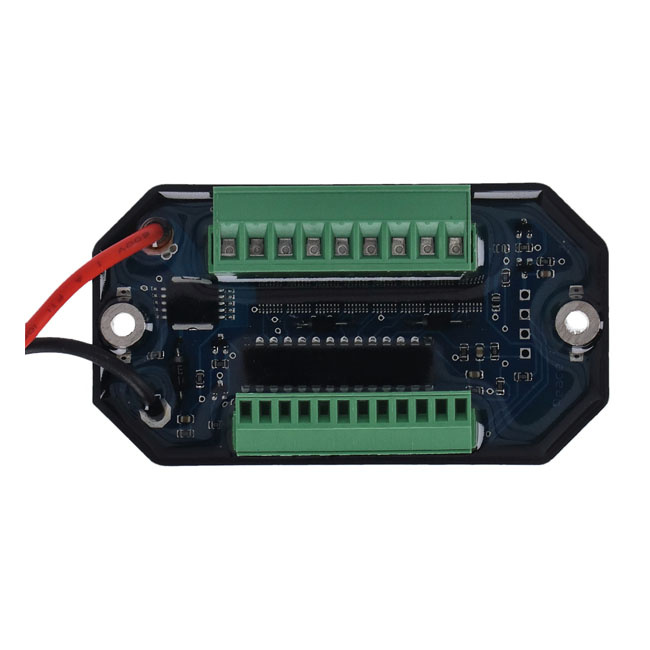

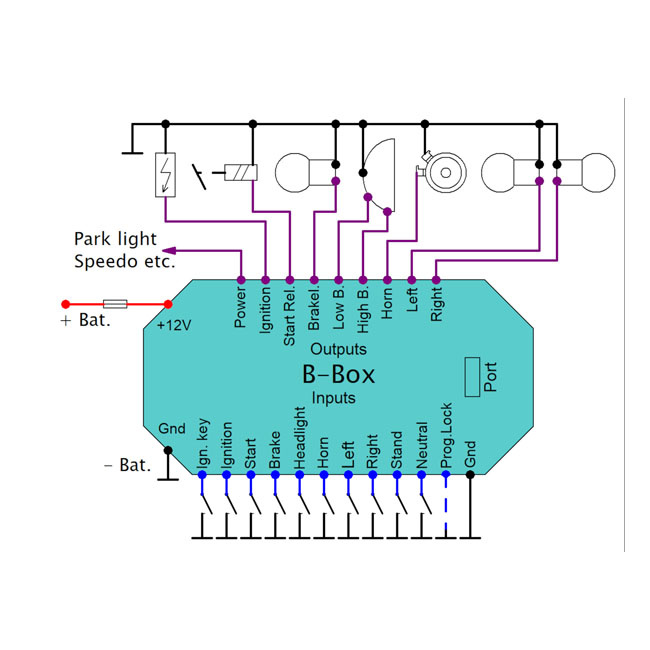

Controlbox (Box-B brain box) with screw connectors. Perfect if sufficient room is available and a quick wiring installation is required. Functions: - Ignition (with or without side stand switch control) via the ignition switch - Switch output, for parking light etc. - Starter (with or without neutral switch control) - Headlamp with button or switch control - Turn signal relay, controlled with buttons or switches - Brake light with selectable flasher function - Horn - Dimensions: 92 mm x 50 mm x 36 mm including connector terminals - Body material: shock resistant ABS plastic, waterproof poured resin - Case Color: Black - Main connections: 2.5 qmm - Power consumption in standby: About 0.2 mA - Maximum ambient temperature: 80 degree Celsius - Maximum output current: 5 Ampere / output - Input voltage range: 7 - 18 Volt - Maximum current / Box: 20 Ampere.
| Enhet: | Styck |
| Kategori: | Wiring misc |
| Produkt-typ: | Wiring misc |
Controlbox (Box-B brain box) with screw connectors. Perfect if sufficient room is available and a quick wiring installation is required. Functions: - Ignition (with or without side stand switch control) via the ignition switch - Switch output, for parking light etc. - Starter (with or without neutral switch control) - Headlamp with button or switch control - Turn signal relay, controlled with buttons or switches - Brake light with selectable flasher function - Horn - Dimensions: 92 mm x 50 mm x 36 mm including connector terminals - Body material: shock resistant ABS plastic, waterproof poured resin - Case Color: Black - Main connections: 2.5 qmm - Power consumption in standby: About 0.2 mA - Maximum ambient temperature: 80 degree Celsius - Maximum output current: 5 Ampere / output - Input voltage range: 7 - 18 Volt - Maximum current / Box: 20 Ampere.
