James, Cylinder Base Gasket Fr/Rr. .020" Paper 84-99 Evo Big Twin
310 kr
- Översikt
- Passar till
Ge ditt omdöme
Artikelnummer: 503030
Leveranstid:
Frakt:

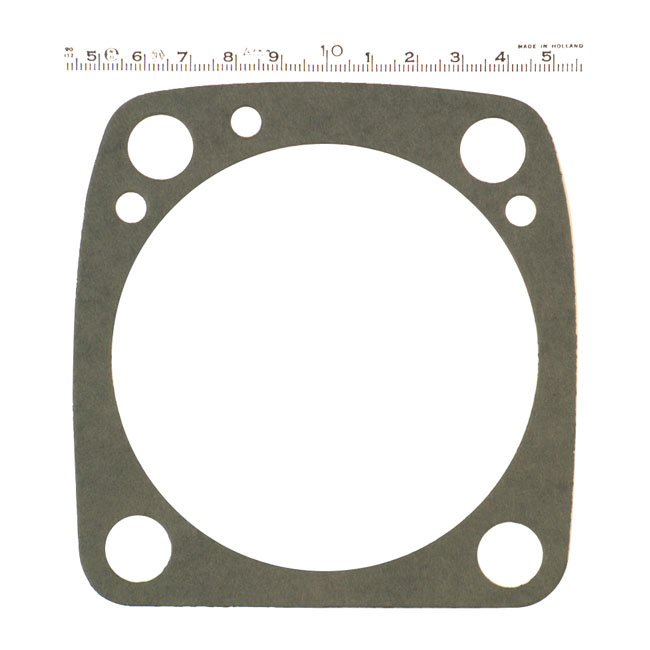

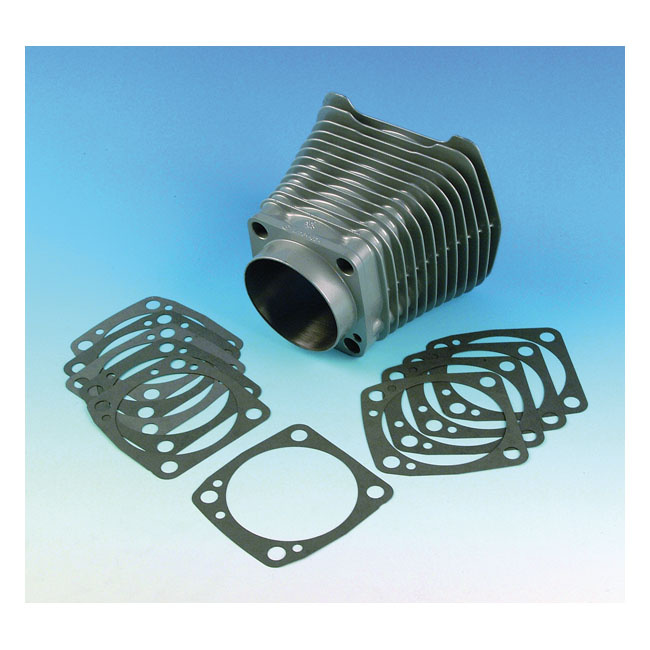

James, cylinder base gasket FR/RR. .020" paper
'Type A'. Front & rear .020" thick fiber reinforced paper. Final crush .016". OEM replacement reference 16774-84A. Type A' gasket explained: Type A' was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contoures of the cylinder base perfectly. They will fit 86-22 Evo XL, but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets. Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations. Gaskets for front & rear cylinder are identical. Only difference between the 'A' & 'B' gaskets is the outside perimeter.
84-99 Evo Big Twin
- Click here to see product in MCS catalog -
| Enhet: | Styck |
| Kategori: | Cylinder base gaskets |
| Produkt-typ: | Cylinder base gaskets |
'Type A'. Front & rear .020" thick fiber reinforced paper. Final crush .016". OEM replacement reference 16774-84A. Type A' gasket explained: Type A' was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contoures of the cylinder base perfectly. They will fit 86-22 Evo XL, but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets. Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations. Gaskets for front & rear cylinder are identical. Only difference between the 'A' & 'B' gaskets is the outside perimeter.
84-99 Evo Big Twin
