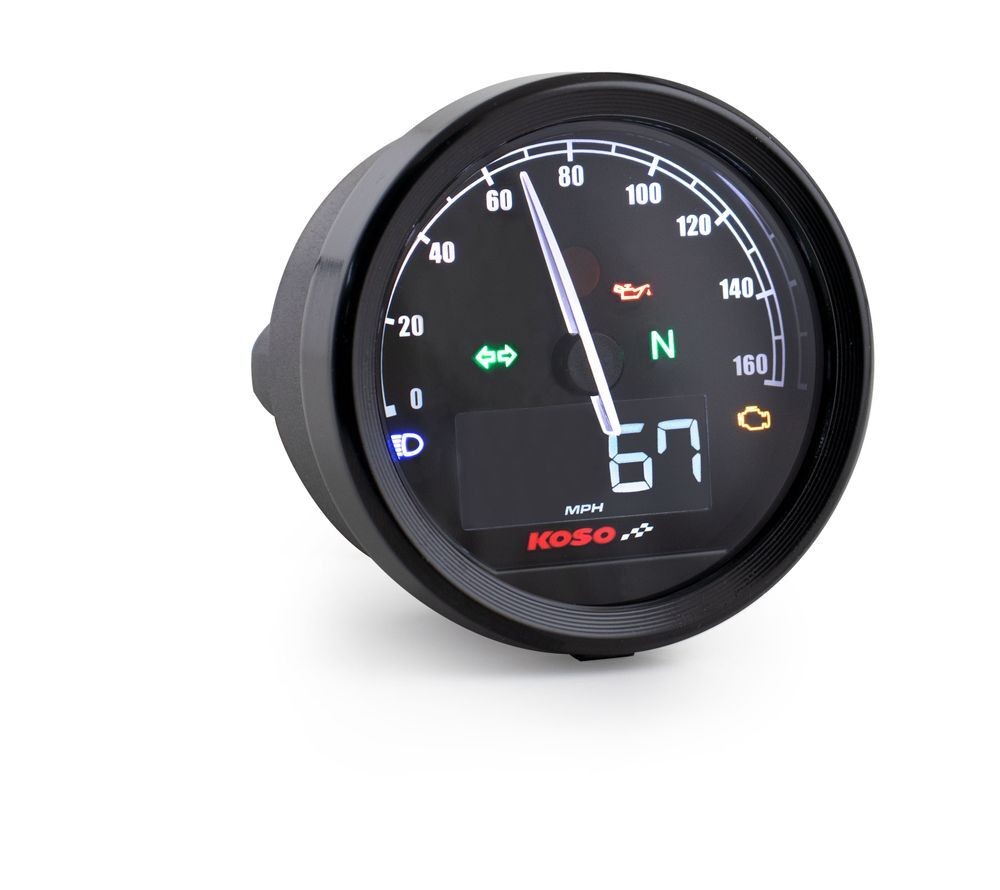

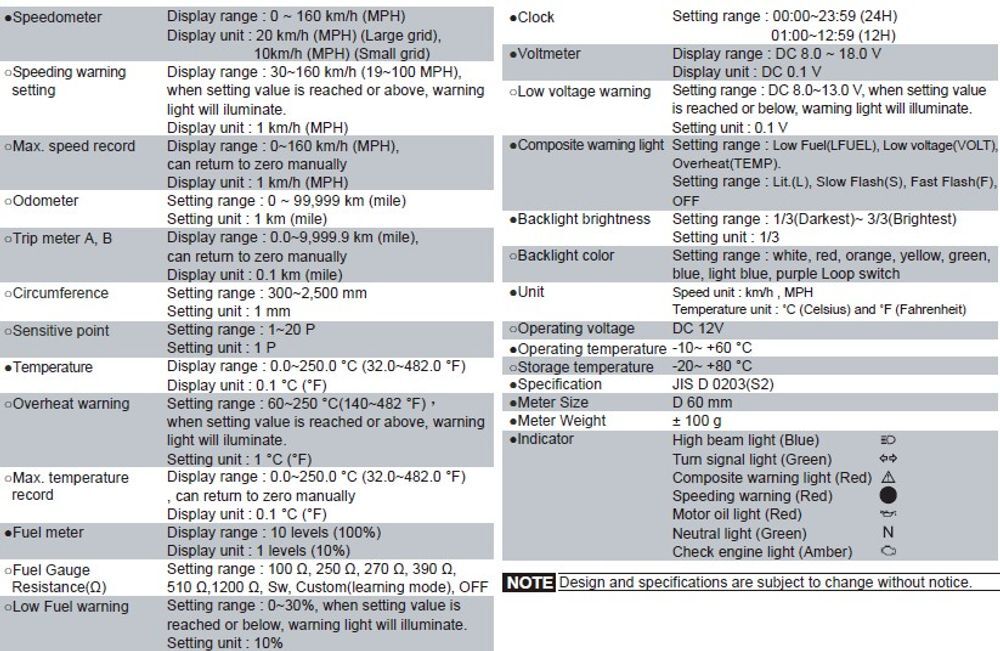

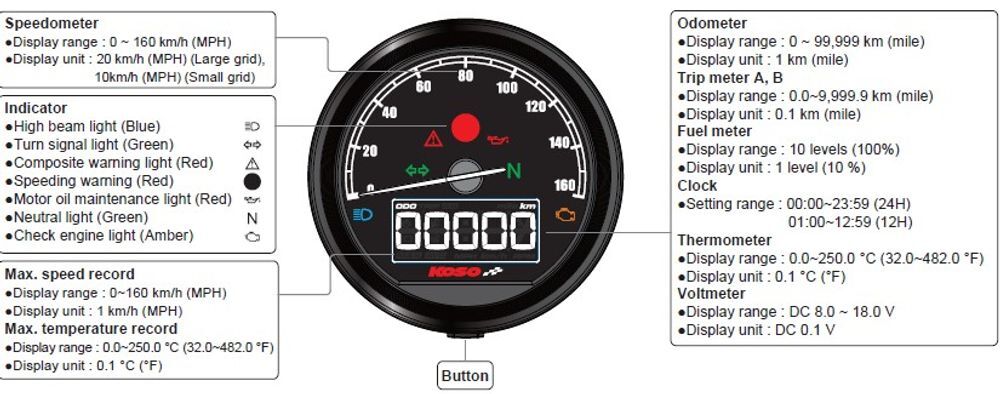

• Speedometer with multiple functions.
• Speedometer range 0 - 160 km/h (mph) with display unit of 20 km/h (MPH) on the Large grid and 10 km/h (MPH) on the Small grid.
• Speeding warning function display range is 30 - 160 km/h (19 - 100 MPH) when set value is reached or above, warning light will illuminate with display unit of 1 km/h (MPH)
• Maximum speed record Display range is 0 - 160 km/h (MPH) can be returned manually to zero with display unit of 1 km/h (MPH)
• Odometer setting range 0 - 99,999 km (mile) with setting unit of 1 km (mile)
• Trip meter A,B display range 0.0 - 9,999.9 km (mile) can be returned to zero manually with display unit of 0.1 km (mile)
• Circumference setting range 300 - 2,500 mm with setting unit of 1mm
• Sensitive point setting range 1 - 20 P with setting unit of 1 P
• Temperature display range 0.0 - 250.0 °C (32.0~482.0 °F) with display unit of 0.1 °C (°F)
• Overheat warning setting range 60 - 250 °C (140~482 °F) when set value is reached or above warning light will illuminate with setting unit of 1 °C (°F)
• Maximum temperature display range 0.0 - 250.0 °C (32.0 - 482.0 °F) can be manually returned to zero with display unit of 0.1 °C (°F)
• Fuel meter display range 10 levels (100%) with display unit of 1 level (10%)
• Fuel gauge setting range 100 O, 250 O, 270 O, 390 O, Resistance (O) 510 O, 1200 O, Sw, Custom(learning mode), OFF
• Low fuel warning setting range 0 - 30% when set value is reached or below warning light will illuminate with setting unit of 10%.
• Clock setting range 00:00 - 23:59 (24H) and 01:00 - 12:59 (12H)
• Voltmeter display range DC 8.0 - 18.0 V with display unit of DC 0.1 V
• Low voltage warning setting range DC 8.0 - 13.0 V when set value is reached or below warning light will illuminate with setting unit 0.1 V
• Composite warning light setting range Low Fuel (LFUEL), Low voltage(VOLT), Overheat(TEMP) with setting range of Lit.(L), Slow Flash(S), Fast Flash(F) and OFF.
• Backlight brightness setting range 1/5 (Darkest) - 5/5 (Brightest) with setting unit 1/5 (20%).
• Backlight color setting range White, Red, Orange, Yellow, Green, Blue, Light blue, Purple and Loop switch.
• Unit speed unit KM/H and MPH
• Temperature unit °C (Celsius) and °F (Fahrenheit)
• Operating voltage DC 12V
• Operating temperate -10 - +60 °C and Storage temperature -20 - +80 °C

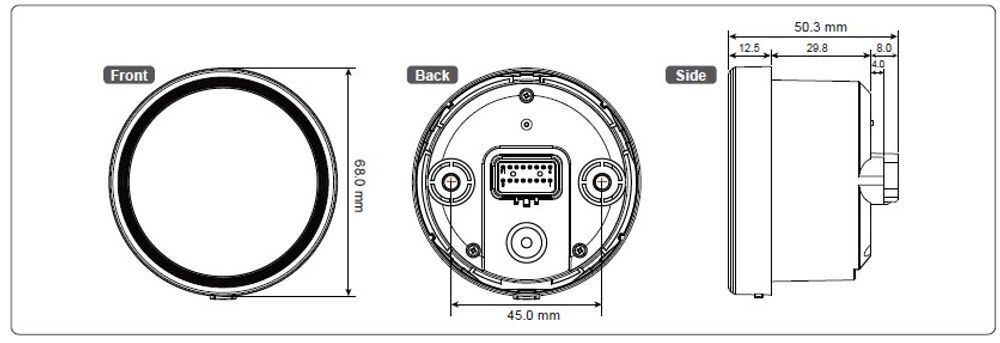

• Meter diameter 60 mm
• Indicator colors High beam light (Blue), Turn signal light (Green), Composite warning light (Red), Speeding warning (Red), Motor oil light (Red), Neutral light (Green) and Check enginge light (Amber)
