Artikelnummer: 38500250

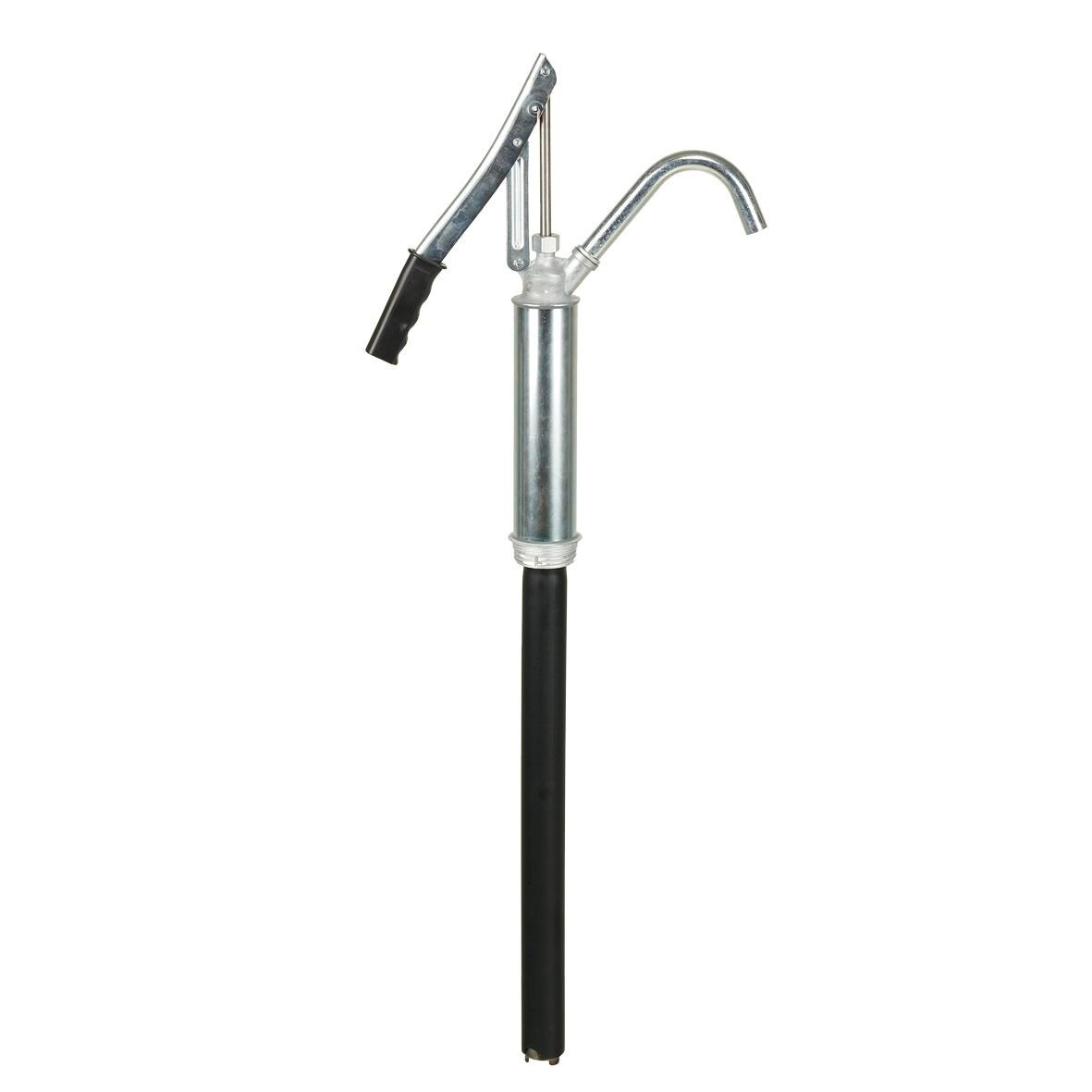

Barrel Pump
Steelpipe-barrel pumpSRL 480-900-16 l/min-STAKSpecificationPacked in single carton boxWith EAN bar codeSpecial notesSuitable for use in conjunction with engine oil from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, fuel oil, diesel, machine oil, cutting oil, petroleum, indiluted anti-freezeIn case of leakage at the piston, retighten the union nut SW 22Technical dataDelivery rate (l/stroke): 0,3Delivery rate (l/min): 16Pumping media: oils up to SAE 90Application: container, for 60 / 200 / 220 lDischarge: steel discharge spout, secured by cap screwLength of suction tube (mm): 480-900Surface treatment: all steel components are galvanizedBarrel screw coupling: G 2" male and 2" male buttress threadWeight (kg): 1,73MaterialPump head (in contact with liquid): impact-resistant zinc die castingPump body (in contact with liquid): steelSeals (in contact with liquid): PVC, NBRUnits: Each
Color/Finish: Black| Stainless Steel
Product Name: Adapter
Application: Oil
Material: Steel
Features: Adjustable| Lockable
Type: Fluid Evacuator
Barrel PumpSteelpipe-barrel pumpSRL 480-900-16 l/min-STAKSpecificationPacked in single carton boxWith EAN bar codeSpecial notesSuitable for use in conjunction with engine oil from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, fuel oil, diesel, machine oil, cutting oil, petroleum, indiluted anti-freezeIn case of leakage at the piston, retighten the union nut SW 22Technical dataDelivery rate (l/stroke): 0,3Delivery rate (l/min): 16Pumping media: oils up to SAE 90Application: container, for 60 / 200 / 220 lDischarge: steel discharge spout, secured by cap screwLength of suction tube (mm): 480-900Surface treatment: all steel components are galvanizedBarrel screw coupling: G 2" male and 2" male buttress threadWeight (kg): 1,73MaterialPump head (in contact with liquid): impact-resistant zinc die castingPump body (in contact with liquid): steelSeals (in contact with liquid): PVC, NBRUnits: Each
Color/Finish: Black| Stainless Steel
Product Name: Adapter
Application: Oil
Material: Steel
Features: Adjustable| Lockable
Type: Fluid Evacuator
