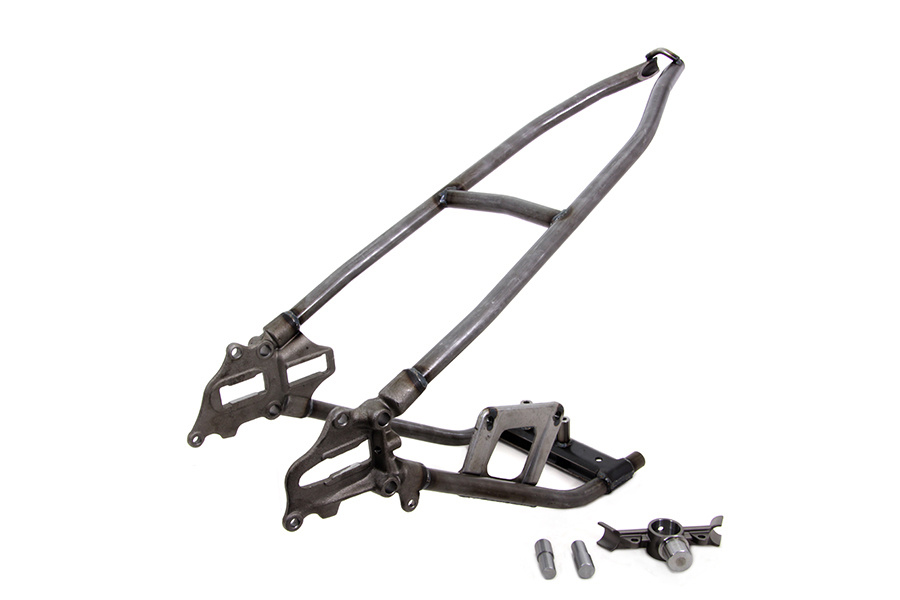

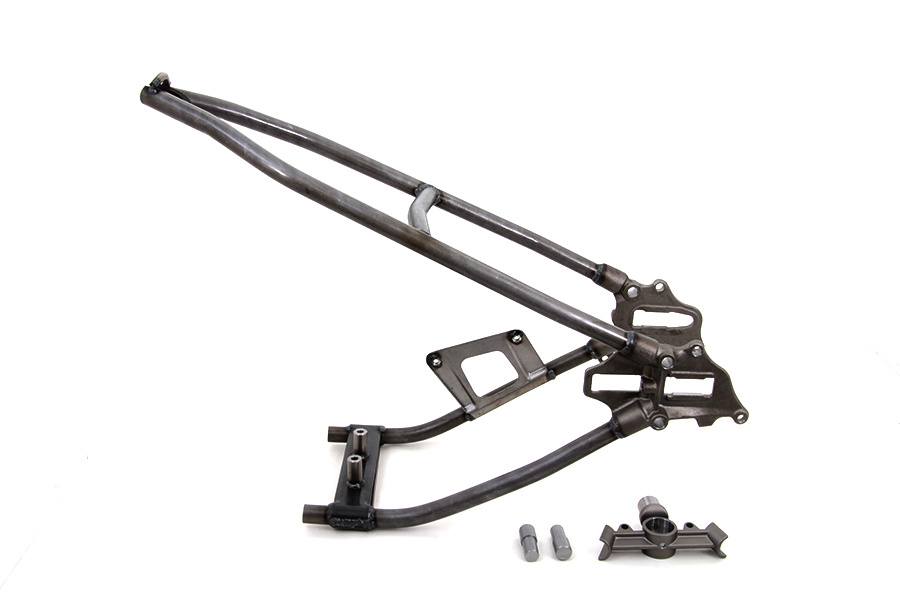

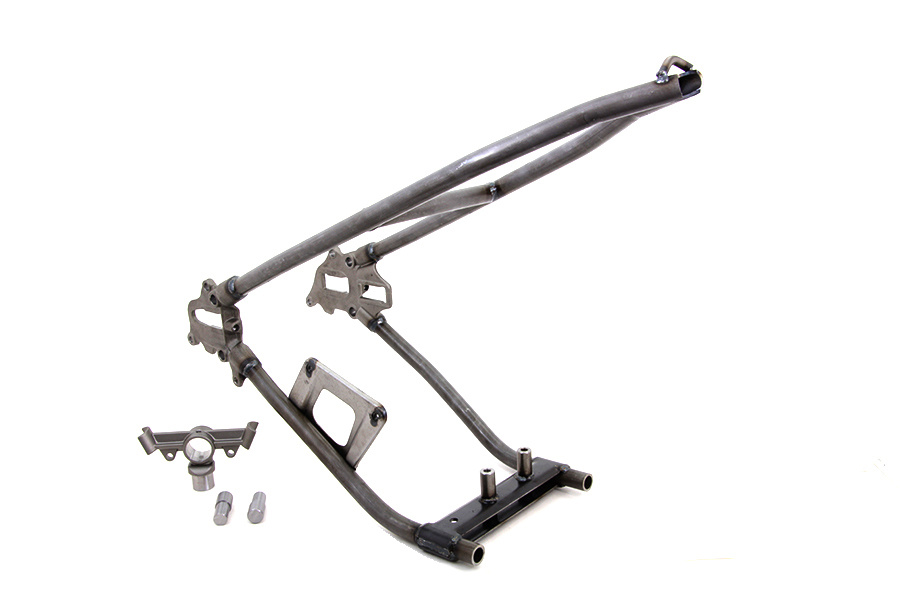

Replica rear hardtail frame section is duplicated from an original rigid frame. Weld-on type and does not have seat post bushing.
The rear transmission mounts are 1-1/2" tall. This hardtail includes rear transmission mount, tool box bracket, fender cross brace, seat post top yoke, and 2 dowel pins to connect lower frame tubes. Installer must weld lower tube inserts and top seat post yoke assembly in place, which requires alignment and fitting of the components. Top seat post forging is included but not welded in place, fabricator or installer must add tubing and seat post bushing. *NOTE: The seat post bushing must be ordered separately. *NOTE: Transmission height shimming may be required. The axle slots are 7/8" on both sides. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
The rear transmission mounts are 1-1/2" tall. This hardtail includes rear transmission mount, tool box bracket, fender cross brace, seat post top yoke, and 2 dowel pins to connect lower frame tubes. Installer must weld lower tube inserts and top seat post yoke assembly in place, which requires alignment and fitting of the components. Top seat post forging is included but not welded in place, fabricator or installer must add tubing and seat post bushing. *NOTE: The seat post bushing must be ordered separately. *NOTE: Transmission height shimming may be required. The axle slots are 7/8" on both sides. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
FITS | FX 1971-1984 FL 1958-1984 |
|---|
