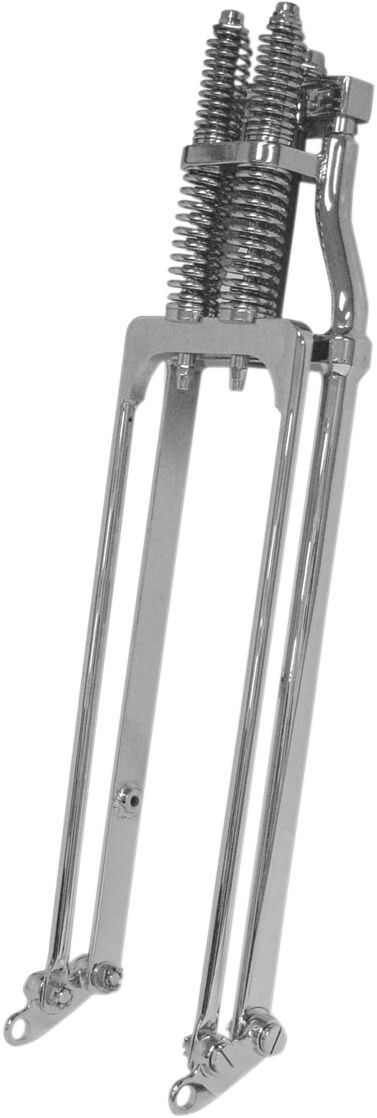

"Springer Fork

Economical alternative to a shock dampened-type Springer

Fully assembled with an in-line top bracket without a built-in rake

1 inch O.D. steering stem designed for Timken® type bearings

Both rear legs are threaded for right or left brakes

The 3/4 inch O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

Measures 9-1/4 inch between Rockers

Riser mounts are on 4-3/4 inch centers and threaded 1/2 inch-20

Requires '84-'99 wheel (compatible with 3/4 inch O.D. axle)

These Springers are measured from the bottom of the top tree to the center of the axle

Springers do not accept spotlight bars; no fender mounts.

For American models only; will not fit on European models.

These spring forks will not fit European models. The standard length Springer (31 inch measured from top bearing to the axle) is comparable to a standard-length FXST front end.

Units: Each
Color/Finish: Chrome
Size: Lifts 102,00 mm (4,00 inch)
Type: Springer
Product Name: Fork Assembly
"
