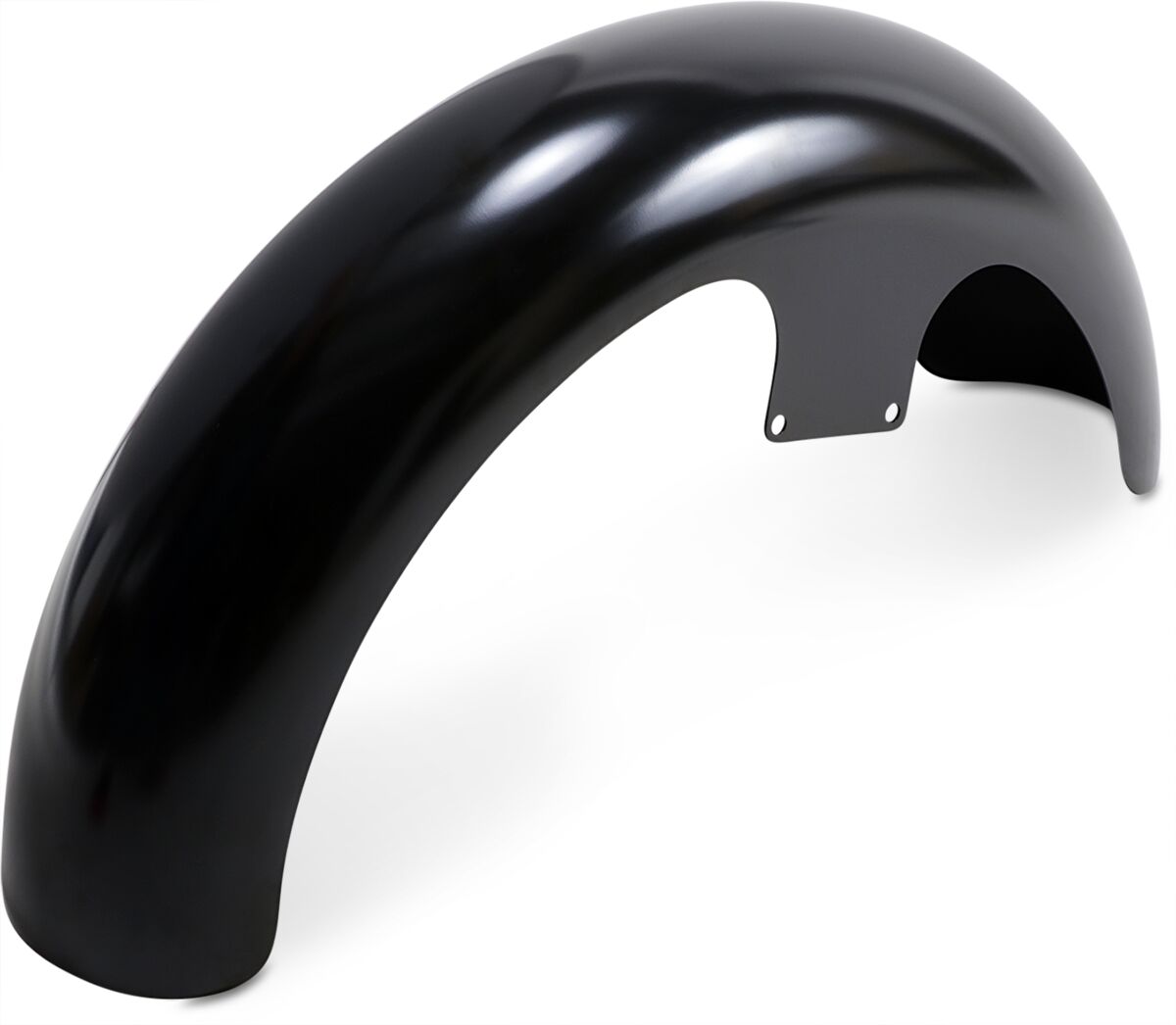

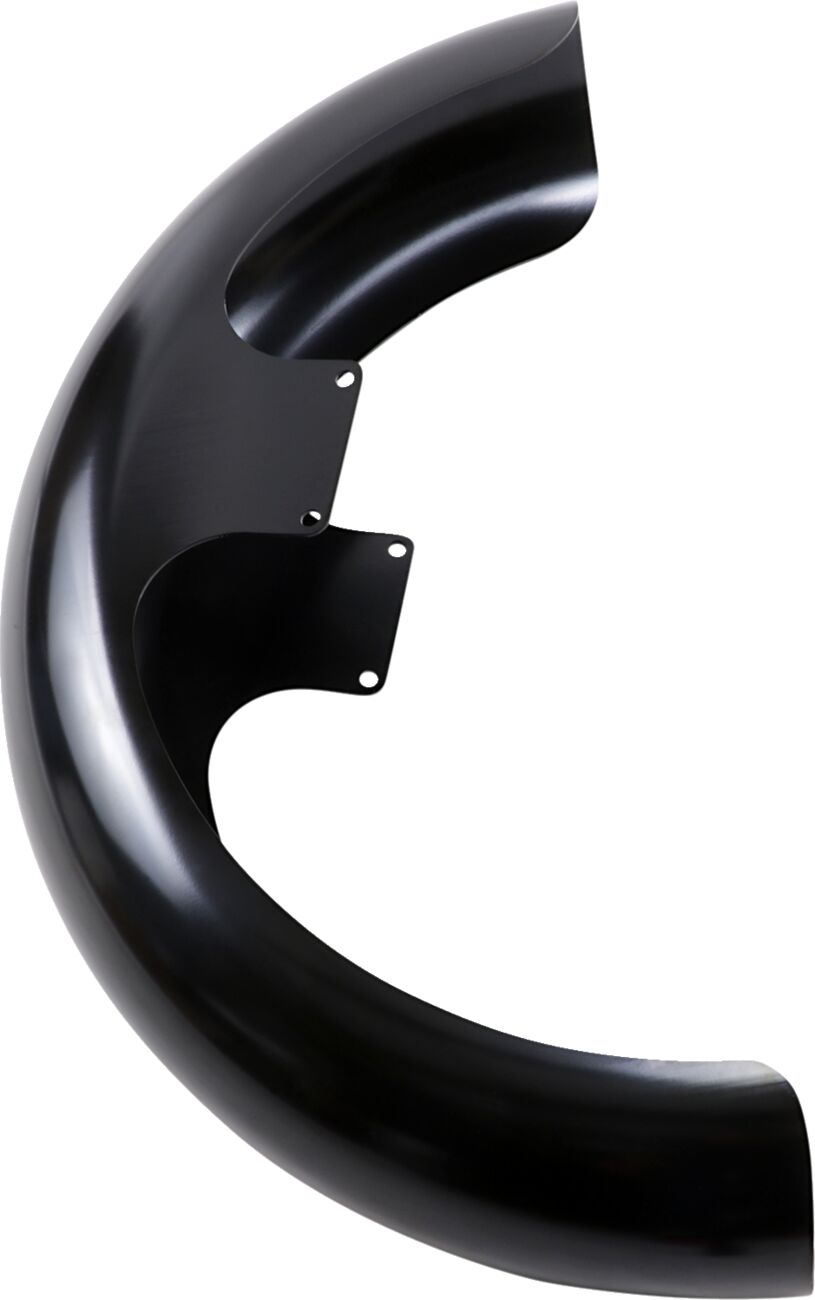

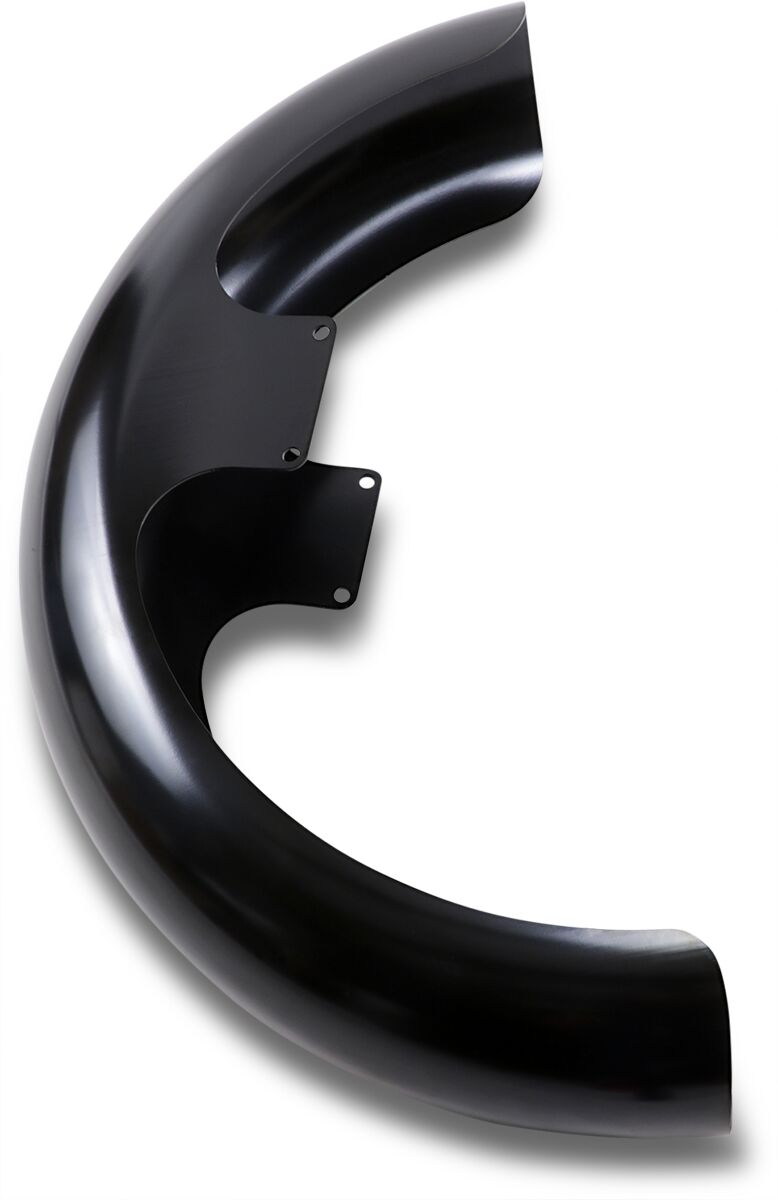

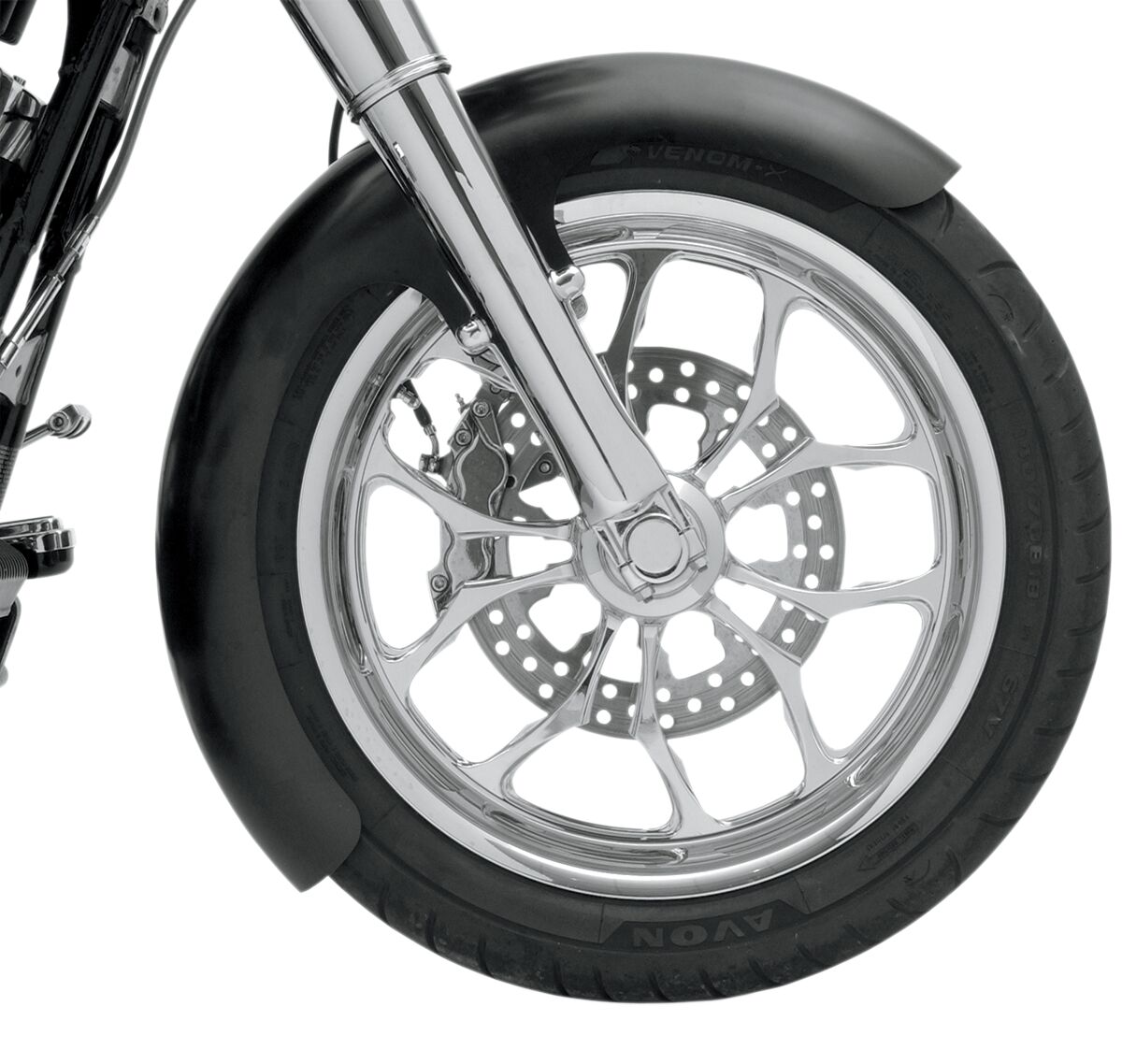

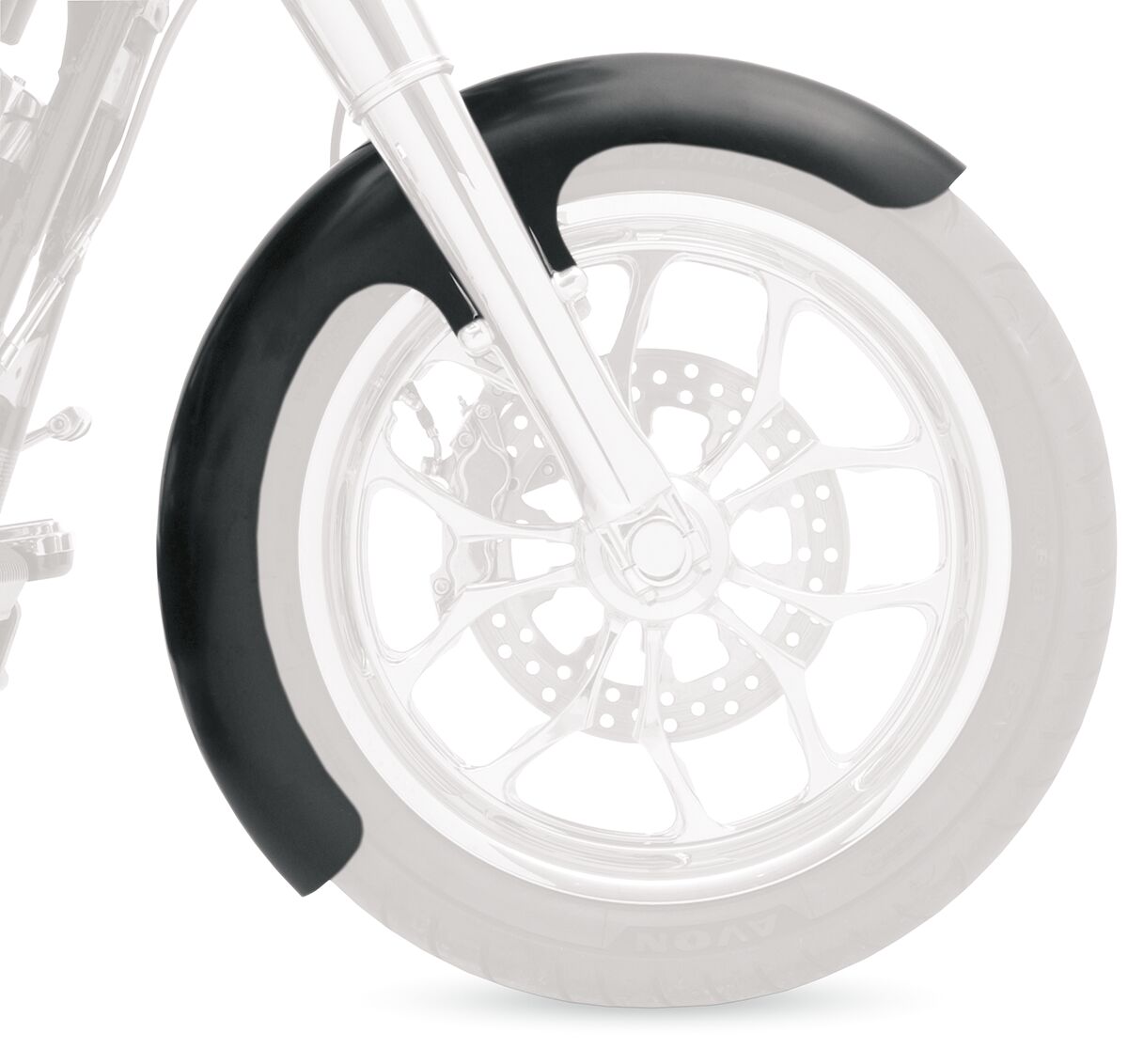

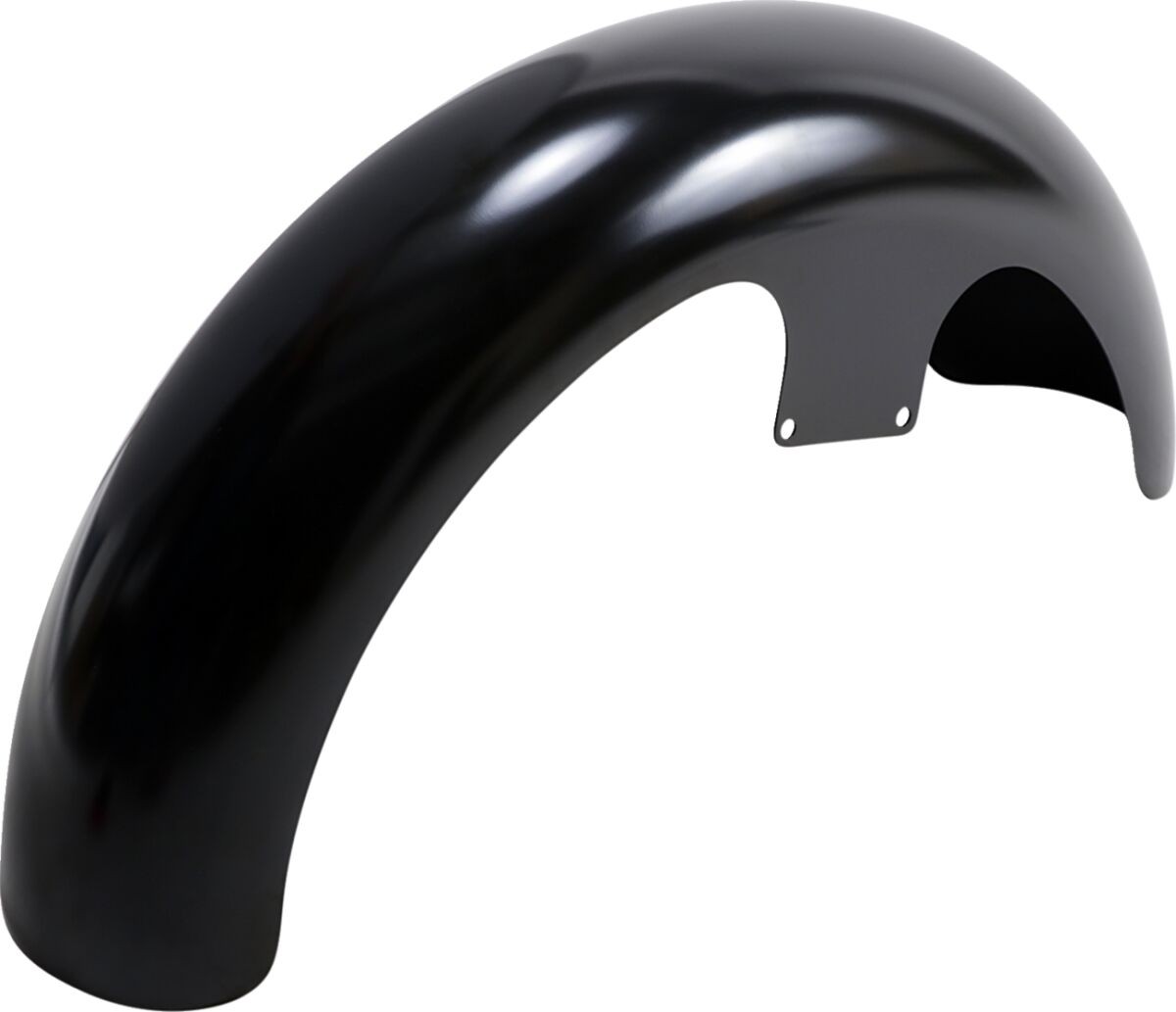

FENDER GROUP

Base Finish: E-Coating
Inside Mounting Width Metric: 163.51 mm
Mounting Position: Front
Features: Requires Mounting Blocks
Contour Length: 1060,00 mm (41,75 inch)
Inside Mounting Width Imperial: 6.4375 inch
Fender Width: 158,75 mm (6,25 inch)
Inside Mounting Width: 163,51 mm (6,4375 inch)
Model: Tire Hugger
Height: 337,00 mm (13,25 inch)
Color/Finish: E-Coating
Straight Line Length: 692,15 mm (27,25 inch)
Outside Mounting Width: 142,875 mm (5,625 inch)
Product Name: Fender
Style: Wrapper
Material: Steel
For Wheel Size: 406,40 mm (16,00 inch)| 431,80 mm (17,00 inch)| 457,20 mm (18,00 inch)| 482,60 mm (19,00 inch)
For Wheel Size Metric: 406.40 mm| 431.80 mm| 457.20 mm| 482.60 mm
Outside Mounting Width Imperial: 5.625 inch
For Wheel Size Imperial: 16.00 inch| 17.00 inch| 18.00 inch| 19.00 inch
Outside Mounting Width Metric: 142.875 mm
Units: Each
