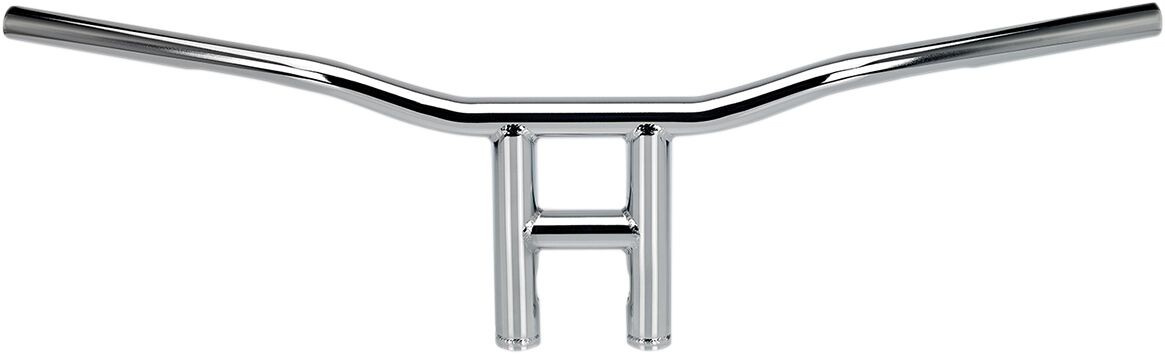

1 inch Handlebar

Manufactured from 1 inch OD x .120 inch wall seamless 4130 chromoly tubing

All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends

All welded joints are precision-mitered and TIG-welded

Not notched for TBW applications.

Vertical uprights have 1-1/4 inch OD

Color/Finish: Chrome
Material: Chromoly
End Rise: 20,5 cm (8 inch)
Height: 20,5 cm (8 inch)
Handlebar Diameter: 28,6 mm (1-1/8 inch)
Pullback/Sweep: 69,9 mm (2-3/4 inch)
Width: 76 cm (30 inch)
Clamping Diameter: 25,4 mm (1 inch)
Units: Each
Controls Diameter: 25,4 mm (1 inch)
Base Color: Silver
Base Finish: Chrome
Features: Slotted| Smooth, Unknurled
Product Name: Handlebar
Rise: 20,5 cm (8 inch)
Type/Bend: T-Bar
Center Width: 88,9 mm (3-1/2 inch)
