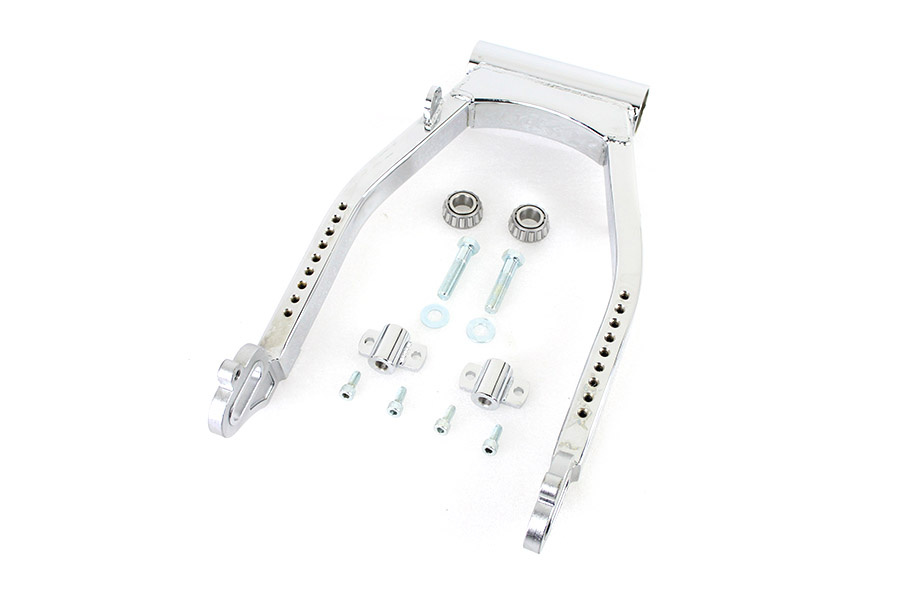

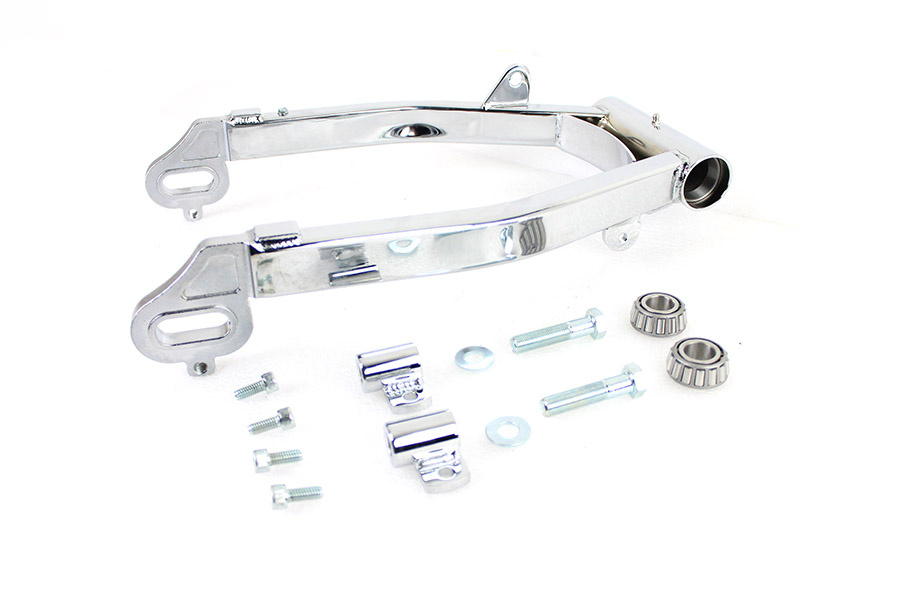

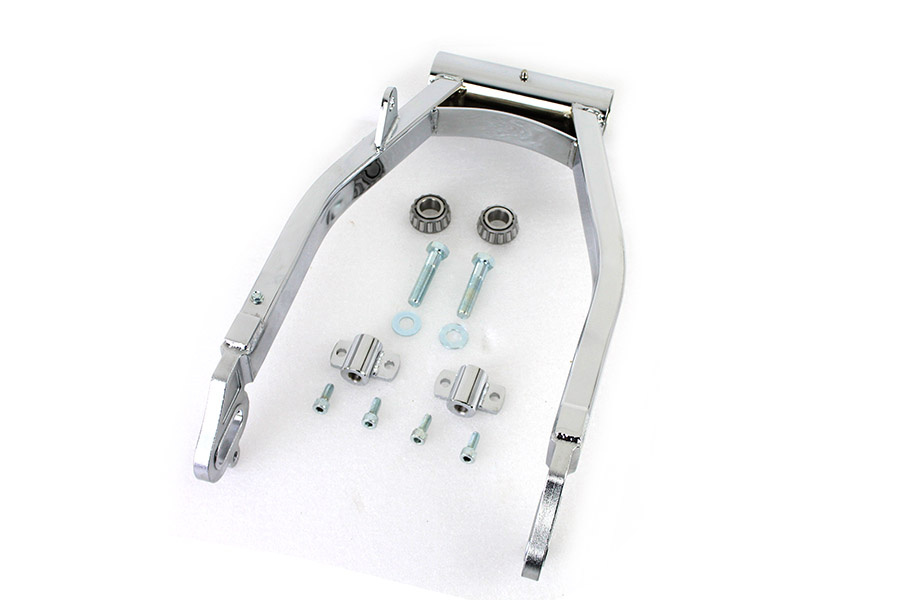

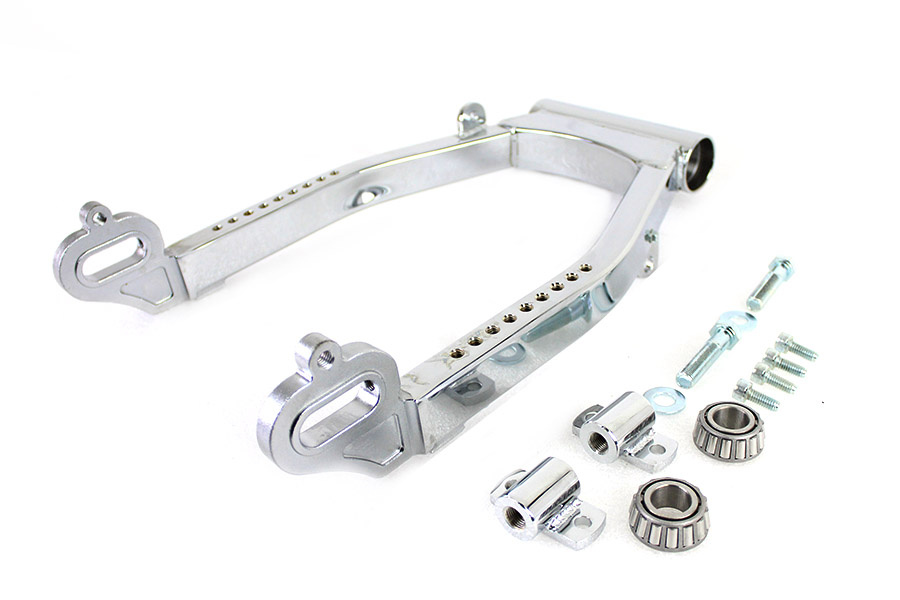

Dropped Swingarm Chrome FL 58-84, FX 71-84
6995 kr
- Översikt
- Passar till
Ge ditt omdöme
Chrome finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4", for disc brake applications.
Lowers bike 1/2" and lengthens wheel base 1/2". Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are also 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating". Shock mounts are 1/2 x 20 thread. The distance between the axle plates measures 9-3/4". *NOTE: Spacers are required to be measured by the installer. *NOTE: Must order swingarm pivot pin assembly separately.
Lowers bike 1/2" and lengthens wheel base 1/2". Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are also 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating". Shock mounts are 1/2 x 20 thread. The distance between the axle plates measures 9-3/4". *NOTE: Spacers are required to be measured by the installer. *NOTE: Must order swingarm pivot pin assembly separately.
FITS | FL 1958-1984 chain drive models only FX 1971-1984 chain drive models only |
|---|
