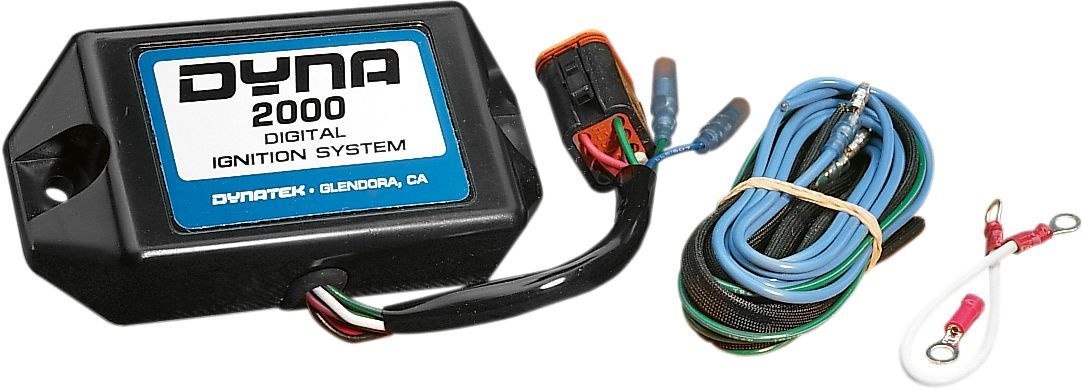

Name: Dynatek Dynatek Dyna 2000 Digital Ignition Module Dual-Fire W/ 7-Pin D
Brand: Dynatek
SKU: 21010044
Price: 3930 SEK
Availability: InStock

Artikelnummer: 21010044

Leveranstid:

2-5 arbetsdagar

Frakt:

Paket/brev max 2 kg

2000-HDE PC-Programmable Digital Ignition Module

A plug-in upgrade to the electronic advance ignition found on late model Harleys, these ignitions are micro-computer controlled, generating extremely accurate control over the entire ignition process

Allow riders to tailor the advance curve and rev limiter to the specific needs of their particular engine, four built-in advance curves cover the needs of stock to highly modified engines over a variety of operating conditions, four independent rev limiter choices from 6000 to 7500 rpm set the exact protection level needed

PC programmability allows you to define a wide-open and part-throttle curve, rev limits, dead-cranking revs and rear cylinder offset

A separate tach output wire allows clean tach operation during rev limiting and when in single-fire mode

A diagnostic LED indicator is included on the back of the control module to assist trouble shooting and static timing

Made in the U.S.A.

IMPORTANT: On any electronic advance ignition such as the Dyna 2000-HD1 or the stock Harley ignition, you must use carbon fiber-type suppression spark plug wires to reduce radio frequency interference. Use of copper wires may cause malfunction of the ignition due to severe electrical noise generated at the spark plugs. The original wire supplied by Harley-Davidson should be okay.

Not for fuel-injected models.

HDE systems are not compatible with Dyna "S" systems. Use HD1/HD2 systems only.

For use with a dual-fire ignition only, it simply plugs right into your 7-pin stock harness and mounts right in the original ignition mounting area

Color/Finish: Black
Product Name: Module
Model: Dyna 2000 Series
Units: Each
Type: Ignition
Connection Type: 7 Pin
Ignition Fire Method: Dual

Enhet:	Styck
Produkt-typ:	Module
Tillverkarens Art. Nr.:	DD2000-HD2EP

Harley Davidson FLHR 1340 Road King 1994-1994
Harley Davidson FLHS 1340 Electra Glide Sport 1991-1993
Harley Davidson FLHTC 1340 Electra Glide Classic 1991-1994
Harley Davidson FLHTCU 1340 Electra Glide Ultra Classic 1991-1994
Harley Davidson FLSTC 1340 Heritage Softail Classic 1991-1995
Harley Davidson FLSTF 1340 Fat Boy 1991-1995
Harley Davidson FLSTN 1340 Heritage Softail Special/Nostalgia 1993-1995
Harley Davidson FLTC 1340 Tour Glide Classic 1991-1991
Harley Davidson FLTCU 1340 Tour Glide Ultra Classic 1991-1993
Harley Davidson FLTCU 1340 Tour Glide Ultra Classic 1994-1994
Harley Davidson FXD 1340 Dyna Super Glide 1995-1995
Harley Davidson FXDB 1340 Dyna Glide Daytona 1992-1992
Harley Davidson FXDB 1340 Dyna Glide Sturgis 1991-1991
Harley Davidson FXDC 1340 Dyna Glide Custom 1992-1992
Harley Davidson FXDL 1340 Dyna Low Rider 1993-1995
Harley Davidson FXDS-CON 1340 Dyna Super Glide Convertible 1994-1995
Harley Davidson FXDWG 1340 Dyna Wide Glide 1993-1995
Harley Davidson FXSTC 1340 Softail Custom 1991-1995
Harley Davidson FXSTS 1340 Softail Springer 1991-1995
Harley Davidson FXSTSB 1340 Bad Boy 1995-1995
Harley Davidson XLH 1200 Sportster 1990-1993
Harley Davidson XLH 883 Sportster 1990-1993
Harley Davidson XLH 883 Sportster Deluxe 1990-1993
Harley Davidson XLH 883 Sportster Hugger 1990-1993
