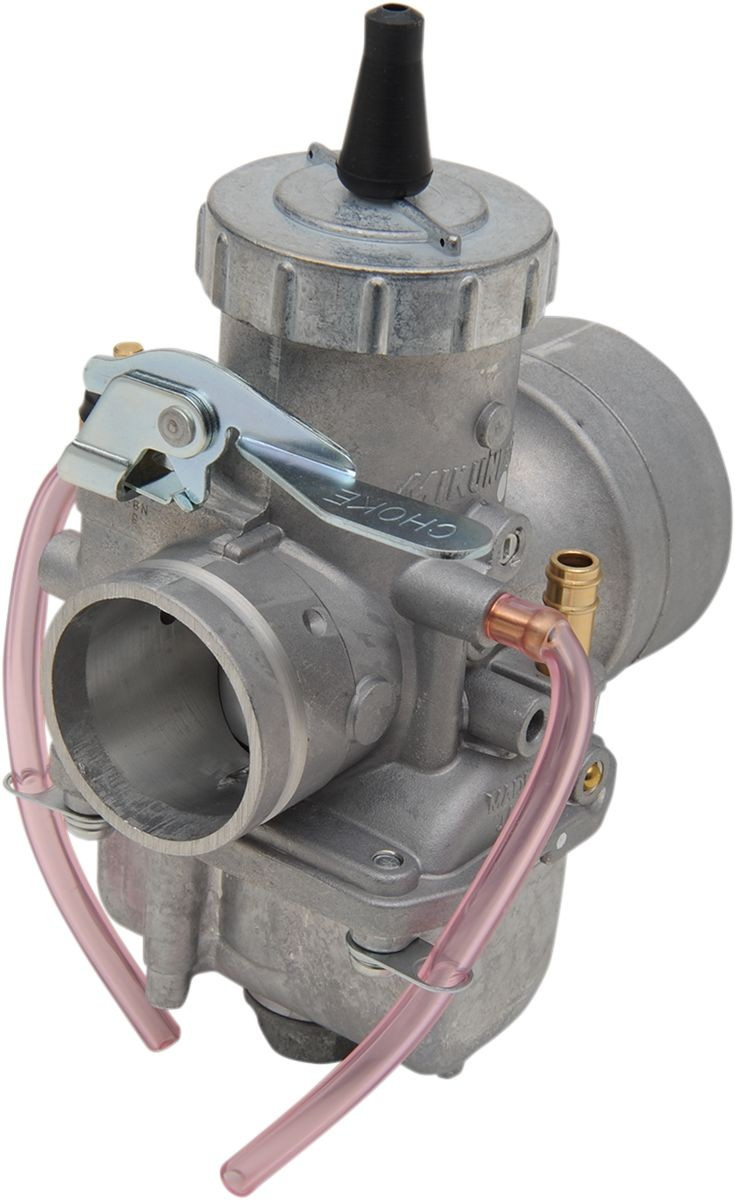

Name: Mikuni Carburetor Vm Series 38Mm Carburetor 38Mm Vm38-9
Brand: Mikuni
SKU: 10020056
Price: 2160 SEK
Availability: InStock

Artikelnummer: 10020056

Leveranstid:

2-5 arbetsdagar

Frakt:

Paket/brev max 2 kg

VM Series Round Slide Carburetor

Adjustment screws and enricher are on left side of carburetor unless noted

Round slide configuration offers great flow characteristics

Use Mikuni jets and parts for best results

Clamp type mounting unless noted via footnote

Made in Japan

Mikuni VM38-9 Dimension A= 43mm, B= 116mm, C= 154mm, D= 62mm

Base Finish: Natural
Needle: 6DP1
Color/Finish: Natural
Spigot Mounting Outside Diameter: 43
Main Jet: 330 (4/042)
Air Jet: 0.5
Needle Valve: 3.3
Carburetor Size: 38,00 mm (1,50")
Carburetor Size Imperial: 1.50"
Features: Clamp-On Type Mounting
Pilot Jet: 30 (VM22/210)
Product Name: VM Round Slide Carburetor
Slide Cutaway: 2.5 (VM38/24)
Carburetor Size Metric: 38.00 mm
Needle Jet: Q-2 (166 Series)
Units: Each

Enhet:	Styck
Produkt-typ:	VM Round Slide Carburetor
Tillverkarens Art. Nr.:	VM38-9
F�rg:	Natural

VM Series Round Slide Carburetor

Adjustment screws and enricher are on left side of carburetor unless noted

Round slide configuration offers great flow characteristics

Use Mikuni jets and parts for best results

Clamp type mounting unless noted via footnote

Made in Japan

Mikuni VM38-9 Dimension A= 43mm, B= 116mm, C= 154mm, D= 62mm

Base Finish: Natural
Needle: 6DP1
Color/Finish: Natural
Spigot Mounting Outside Diameter: 43
Main Jet: 330 (4/042)
Air Jet: 0.5
Needle Valve: 3.3
Carburetor Size: 38,00 mm (1,50")
Carburetor Size Imperial: 1.50"
Features: Clamp-On Type Mounting
Pilot Jet: 30 (VM22/210)
Product Name: VM Round Slide Carburetor
Slide Cutaway: 2.5 (VM38/24)
Carburetor Size Metric: 38.00 mm
Needle Jet: Q-2 (166 Series)
Units: Each
