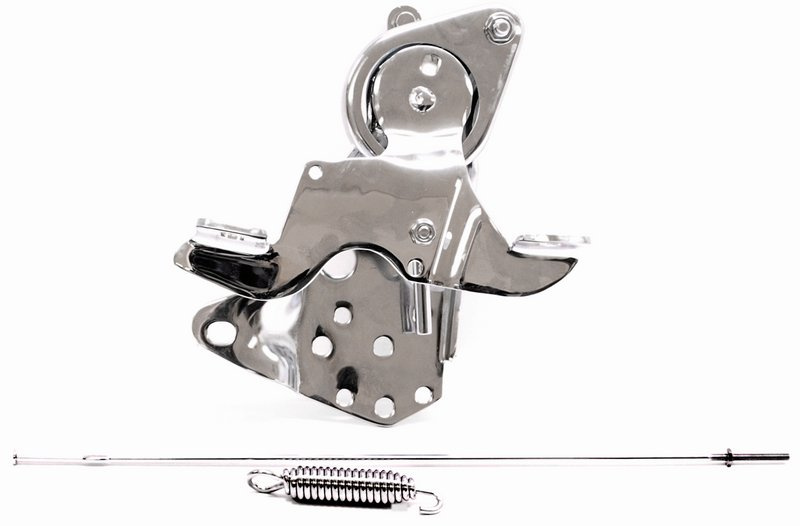

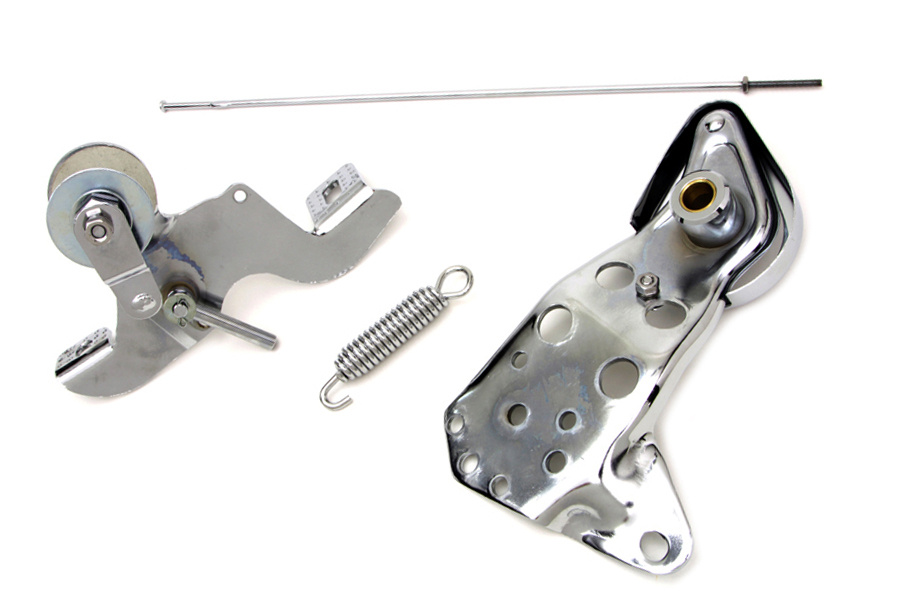

Includes bracket with bushings installed, pedal, spring cover, rod and all friction components.

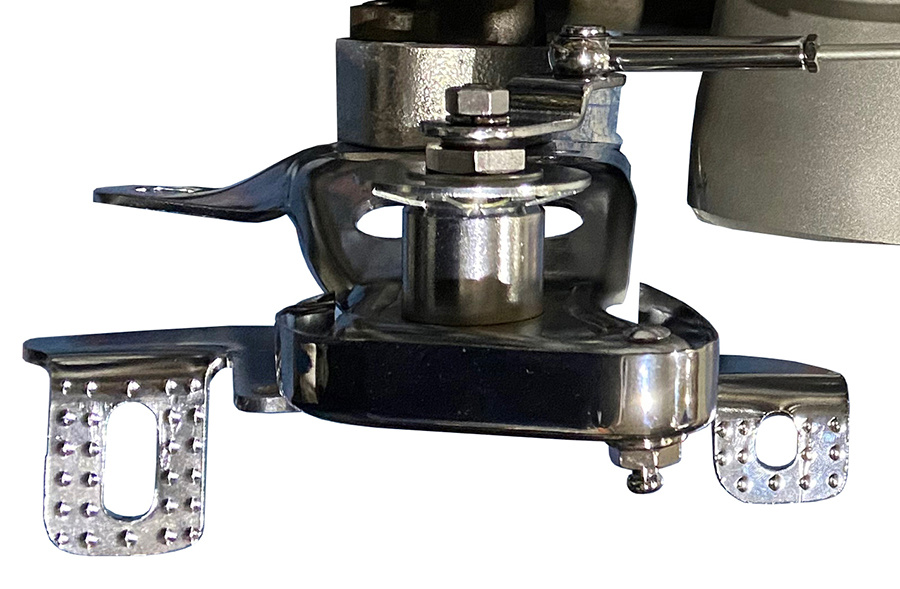

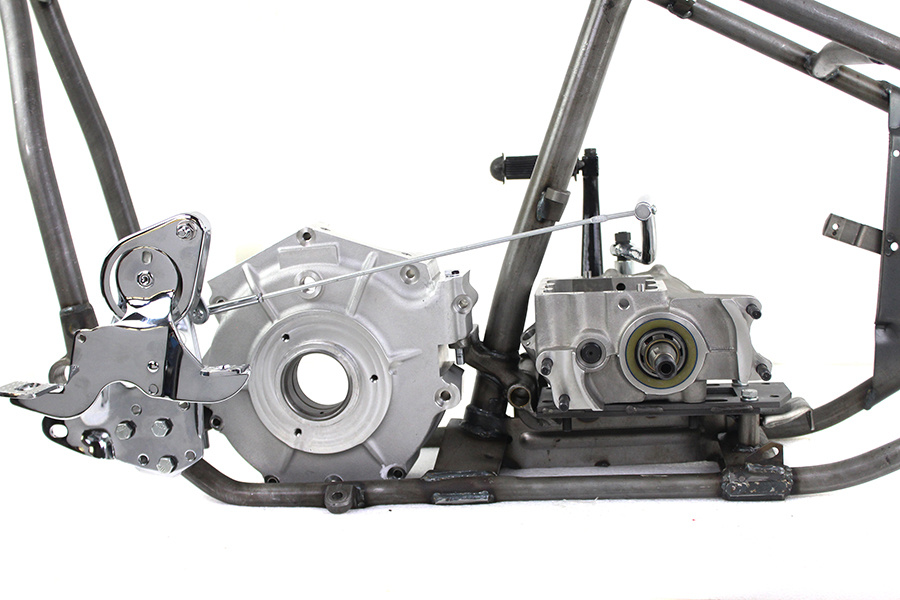

The clutch pull rod connects to the arm on the pivot shaft. This provides an offset to use with an aluminum inner primary cover. Order pull rod end and bolt separately. *NOTE: Can also be used on 1952-1984 Big Twin models when converting to handshift. 1971-1984 models will also require spacer, V-Twin #21-0313. 1965-1978 models will also require V-Twin #18-3606 clutch release lever. 1965-1985 FL models wilil require a spacer, V-Twin 21-0313, rod lever, V-Twin #49-0145 and a snap ring, V-Twin #12-0907. Included the foot clutch rod lever with offset. *NOTE: Inner arm position for use with aluminum primay covers. Spacer required behind rocker clutch assembly as shown. For tin primary applications 1941-1984 FL and 1936-1952 EL, rod can be connected by the foot lever clutch pin directly to the pedal.
The clutch pull rod connects to the arm on the pivot shaft. This provides an offset to use with an aluminum inner primary cover. Order pull rod end and bolt separately. *NOTE: Can also be used on 1952-1984 Big Twin models when converting to handshift. 1971-1984 models will also require spacer, V-Twin #21-0313. 1965-1978 models will also require V-Twin #18-3606 clutch release lever. 1965-1985 FL models wilil require a spacer, V-Twin 21-0313, rod lever, V-Twin #49-0145 and a snap ring, V-Twin #12-0907. Included the foot clutch rod lever with offset. *NOTE: Inner arm position for use with aluminum primay covers. Spacer required behind rocker clutch assembly as shown. For tin primary applications 1941-1984 FL and 1936-1952 EL, rod can be connected by the foot lever clutch pin directly to the pedal.
FITS | FL 1941-1984 EL 1936-1952 UL 1938-1948 |
|---|
