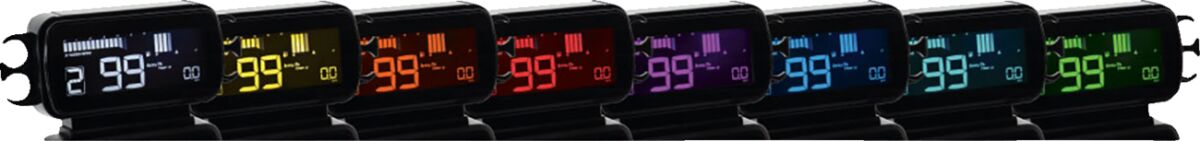

• High quality plug & play meter that is equipped with an 8-color changeable LCD display

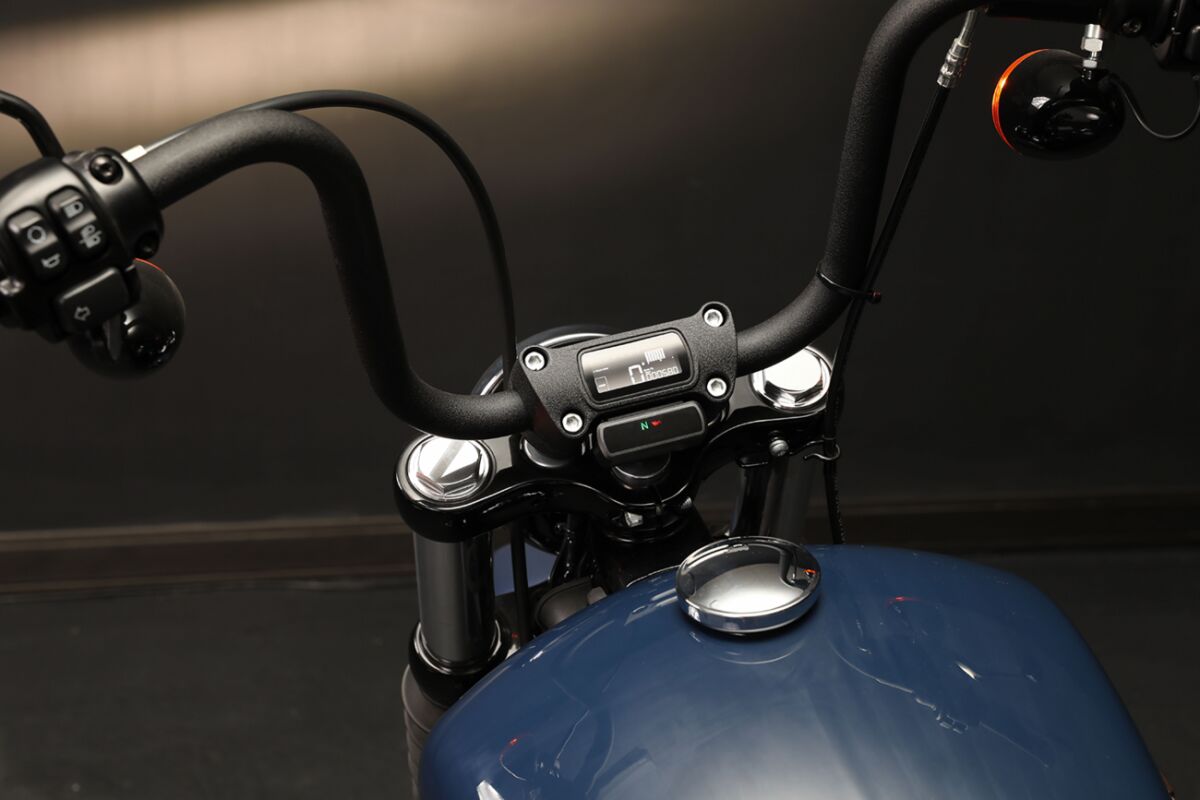

• Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)

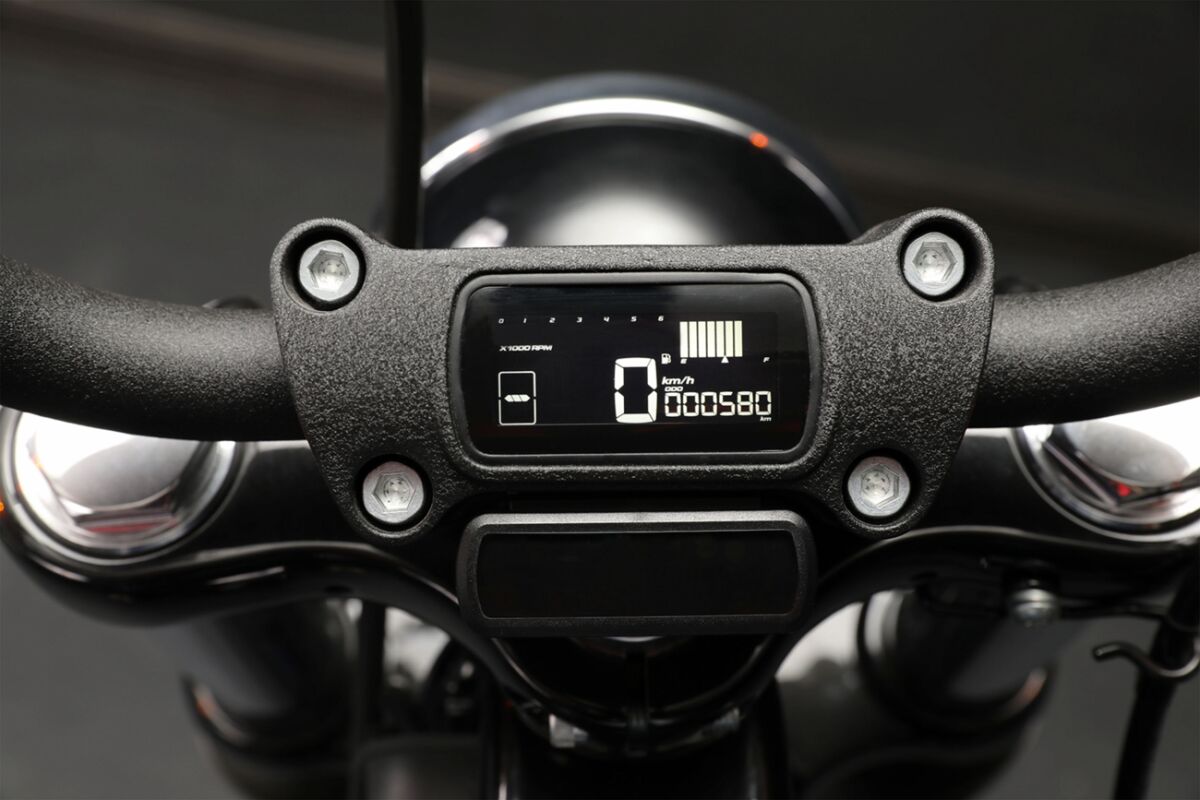

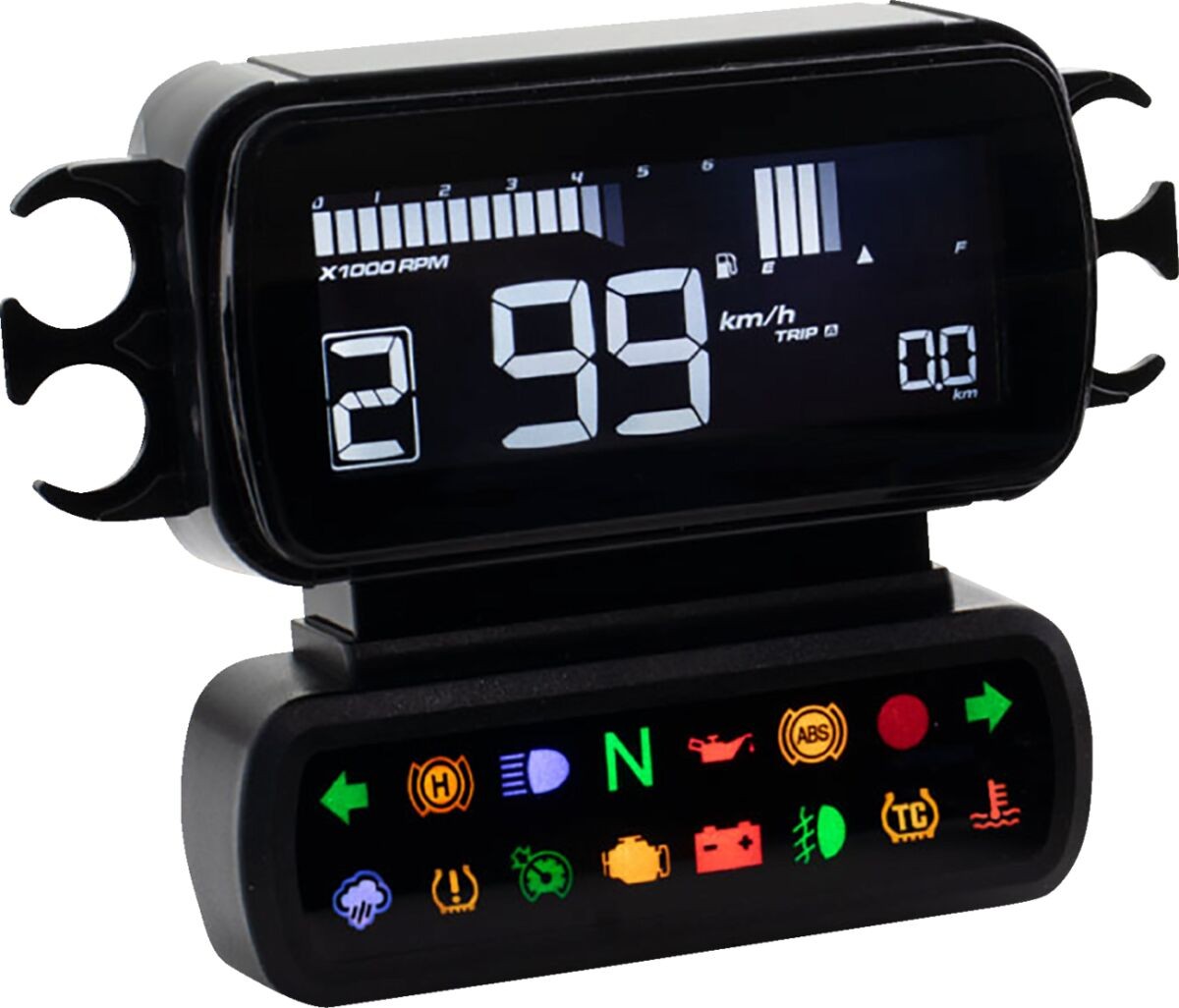

• Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
• Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
• Plugs directly into the stock harness and works directly with CANBUS system
• Display range: 0-124 mph
• Effective temperature range: -4°F-185°F (-20°C-85°C)
• 12VDC battery voltage
• Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
• XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

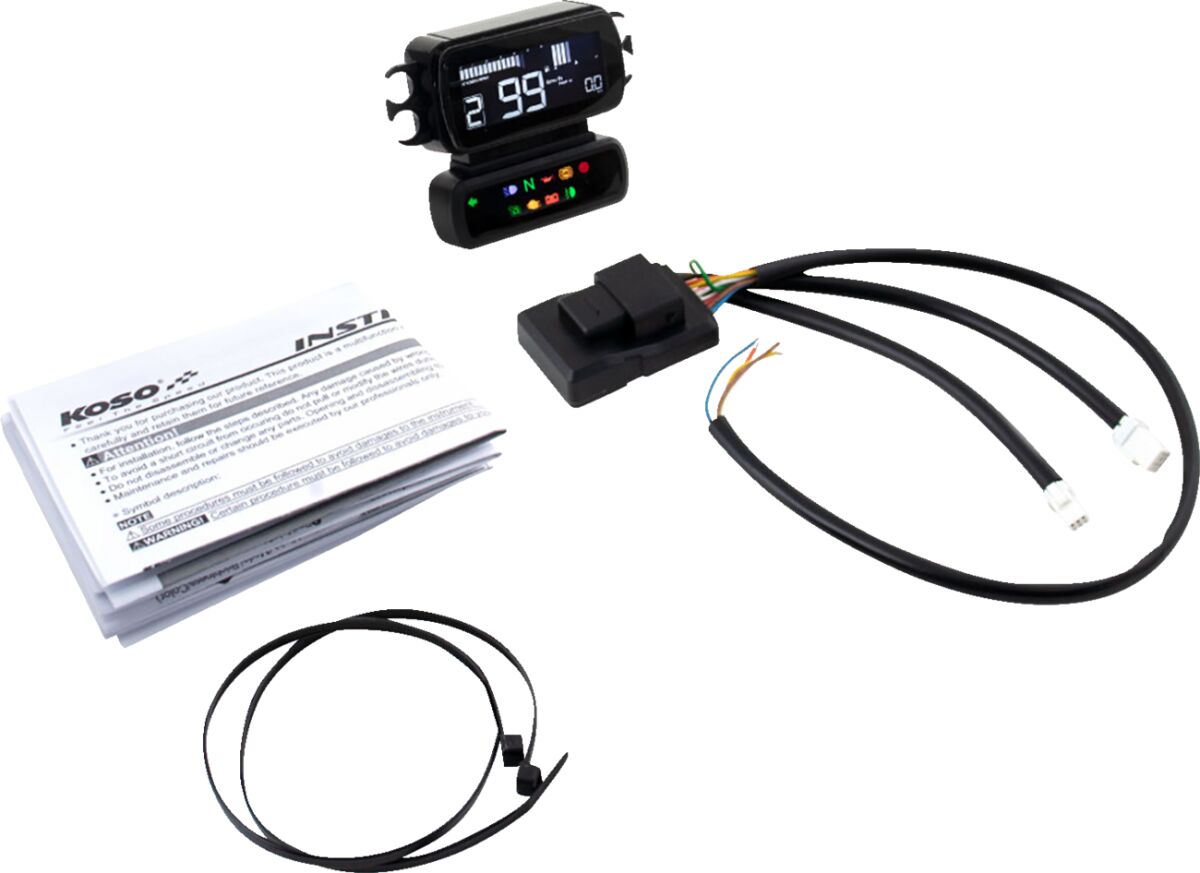

• Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)
