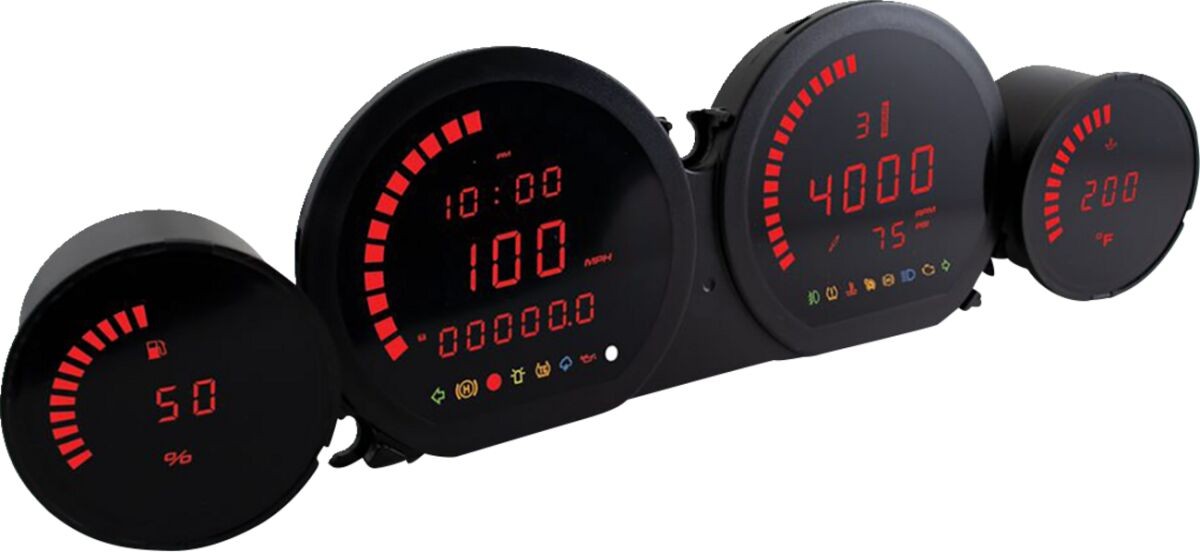

• Plug-and-play
• Fits directly on OEM dash and connectors
• Digit Brightness levels from 1 (darkest) - 5 (brightest)
• Include multifunction speedometer, tachometer, odometer, volt meter, air suspension meter, gear indicator, trip meter, engine temperature, oil temperature, and fuel level gauges
• Indicator lights for oil, engine warning, warning light, high beam, fog light, voltage, anti-theft, cruise, ABS, and turn signals
• Optional air pressure sensor for models equipped with air suspension is available separately
• Specifications:
• Tachometer (0 - 9,999), RPM Shift Light (2,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
• Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (19 - 199 MPH)
• Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
• Engine Temperature (Standard/Customize), Oil Temperature Meter (32° F - 248° F), Maximum Oil Temperature Record (32° F - 248° F), Effective Temperature Range (14° F - 140° F)
• Fuel Meter (6 levels | 1 level = 16.6%), Fuel Tank Volume (Off/1 - 9.9 US Gallons), Average Fuel Consumption (Off/MPG), Remaining Mileage (0 - 6,249 miles)
• Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
• On CVO models the run/stop switch must be in the ON position to change settings on the display.
