Artikelnummer: 17413232

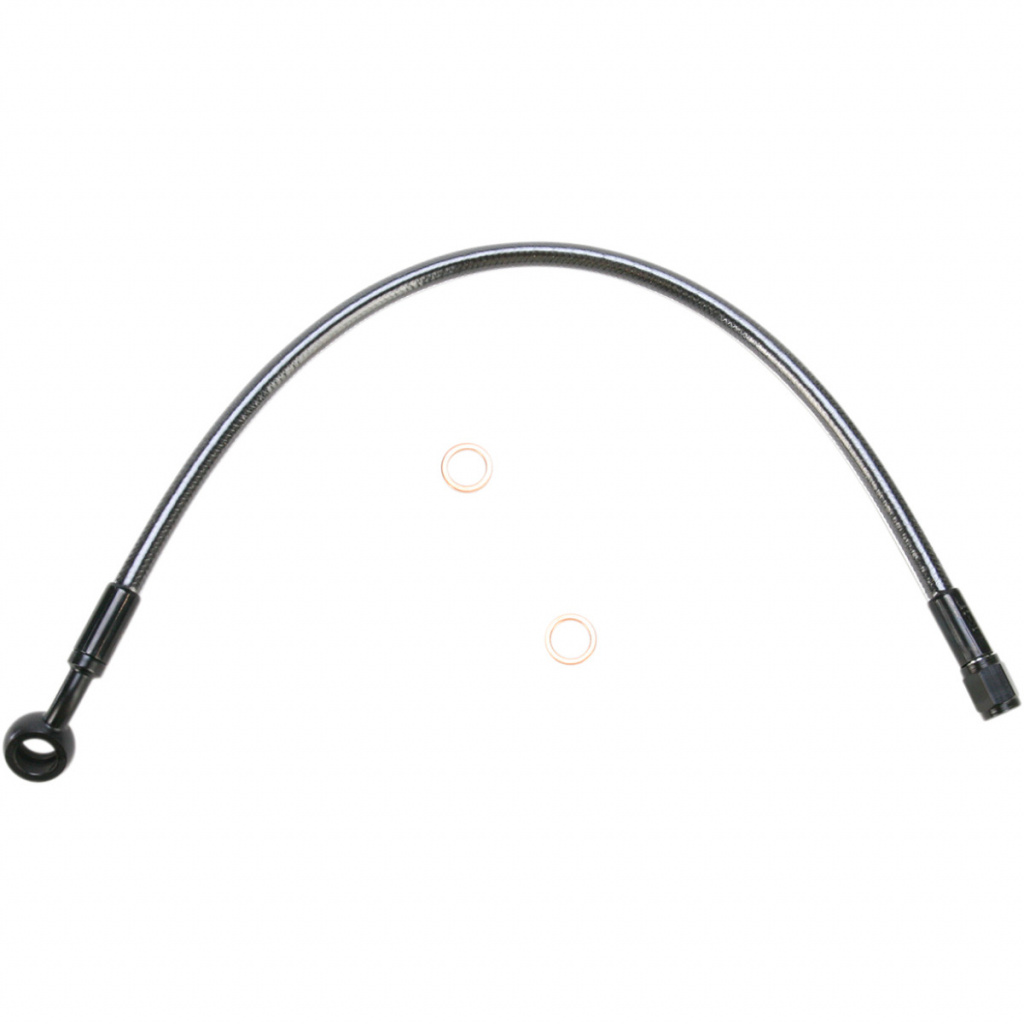

Designer Series Braided Non-ABS Front Brake Line Kit
- Brake kits utilize a superior two-piece design consisting of a direct fit lower assembly used in conjunction with alternative length upper lines
- All brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance
- Choice of 35°, 90° or 180° upper brake line banjo angles ensure a great fit
- -3AN connections for easy installations
- All fittings are highly polished and chrome or black chrome plated
- Braid color and weave match on all Magnum control cables and brake lines
- The Industry’s highest quality braid in three color choices to compliment your bike: Sterling Chromite® II, Black Pearl and Polished Stainless, the brightest “stainless” braid on the market
- Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor
- Inner PTFE tubing braided with aramid reinforcement provides the ultimate in high performance by greatly reducing line expansion
- Exceeds all DOT FMVSS-106 Specifications
- Made in the U.S.A.
- Upper and lower brake line kits are sold separately to allow for a perfect fitment.
- Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment.
- Alternative fitments: Due to handlebar changes, fitment options are accommodated with the UPPER line only. You may prefer to use a different length or banjo angle based your specific routing.
- Non-ABS Models
- one upper and lower kit is required
- two kits per bike.
- Upper line length is determined by measuring the routing path from the top of the lower triple tree to the master cylinder. The upper and lower connection is made at this point.
| COLOR/FINISH | Black |
| LENGTH | 38 cm (15") |
| MATERIAL | Stainless Steel |
| MODEL | Designer Series |
| TYPE | upper |
| UNITS | Each |
| PRODUCT NAME | Brake Line |
| MOUNTING POSITION | Front |
| FOR BRAKING SYSTEM | Without ABS |
| BRAND SPECIFIC COLOR | Black Pearl |
| DISC | Dual |
| UPPER BANJO FITTING | 10 mm 35° Banjo Fitting |
| MASTER CYLINDER BANJO | 10 mm 35° Banjo Fitting |
| BASE COLOR | Black |
Harley Davidson XL 883 R Roadster 883 2002 ALL 34 KW(46 PS); 39 KW(53 PS); 40 KW(54 PS) Non-ABS Front Upper
Harley Davidson XL 883 R Roadster 883 2003 ALL 34 KW(46 PS); 39 KW(53 PS); 40 KW(54 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 1996 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 1997 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 1998 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 1999 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 2000 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 2001 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 2002 ALL 25 KW(34 PS); 36 KW(49 PS); 37 KW(50 PS); 43 KW(58 PS); 45 KW(61 PS); 47 KW(64 PS) Non-ABS Front Upper
Harley Davidson XL 1200 S Sport 1199 2003 ALL 45 KW(61 PS) Non-ABS Front Upper
