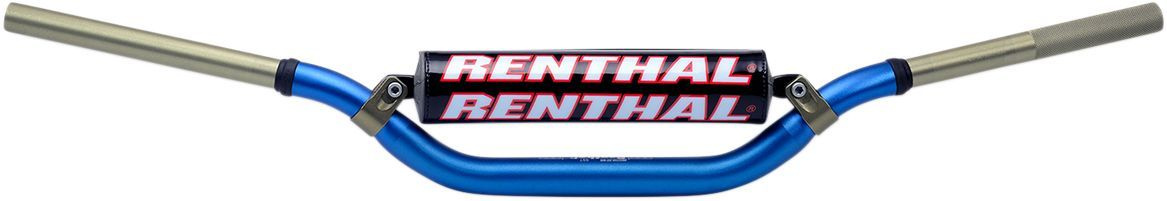

Twinwall® Handlebar

Twinwall® construction consists of two aluminum alloy tubes, one within the other

Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion

Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls

Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out

Laser marked in the middle for accurate positioning

Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability

Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars

Pullback/Sweep: 65 mm (2-9/16")
Color/Finish: Blue
Product Name: Handlebar
Rise: 67 mm (2-5/8")
Base Color: Blue
Clamping Width: 115 mm (4-1/2")
Width: 801 mm (31-1/2")
Height: 99 mm (3-7/8")
End Rise: 70 mm (2-3/4")
Units: Each
Material: Aluminum
Type/Bend: CR| High| Twinwall
