Artikelnummer: 09040095

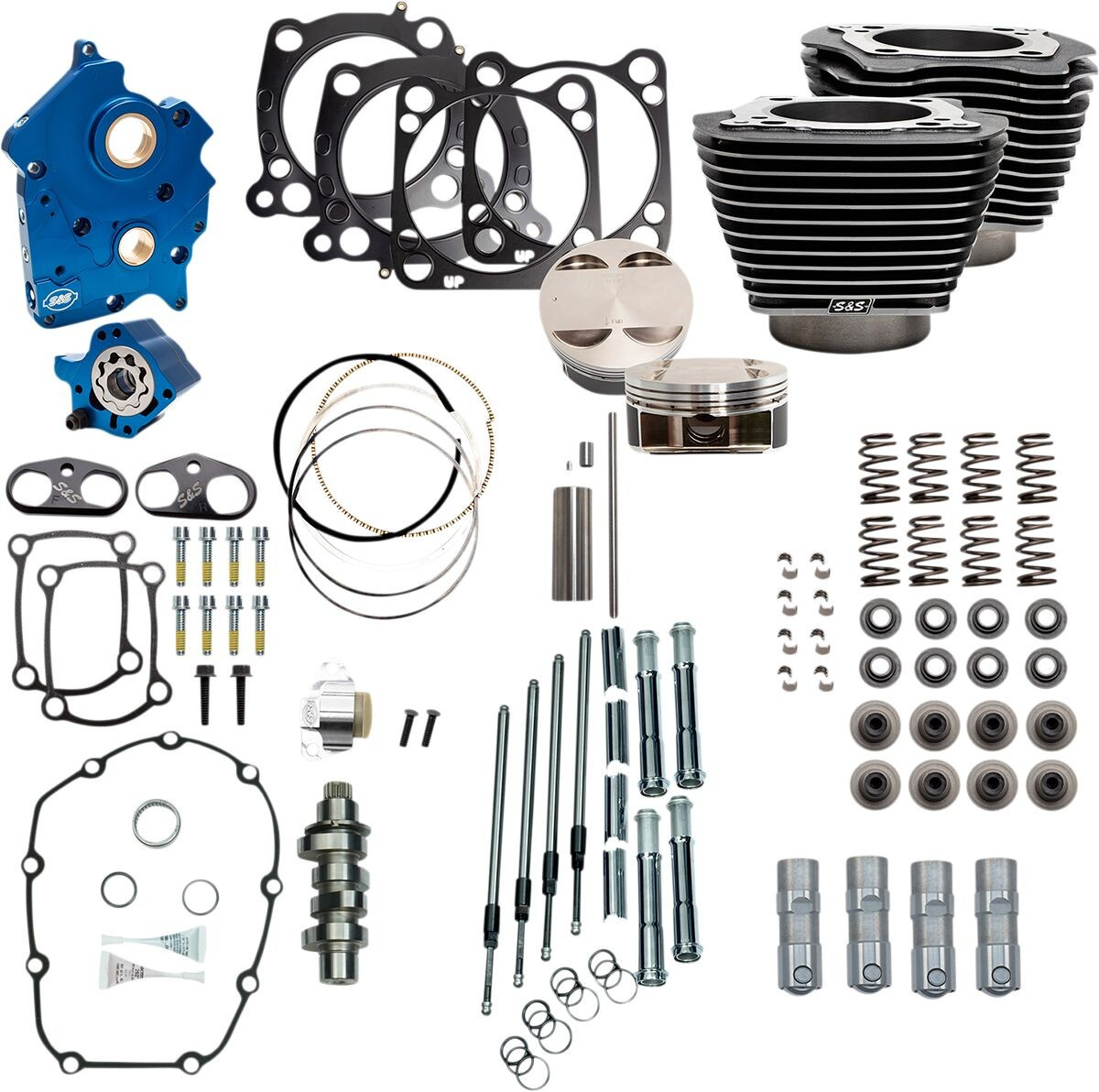

128" Power Package Engine Performance Kit
Big Bore KitBig-bore bolt-on kit increases 114"/117" with 4-1/2" stroke M-Eight to 128" with no case machining required4-1/4" bore cylinders with 11:1 forged pistonsOil Pump/Cam PlateS&,S oil pump/cam plate with blue anodized finishPassage plugs are removable for servicingIndependent scavenge sections for flywheel cavity and cam chestDebris screen in both scavenge pickupsMagnet in cam chest to help prevent debris from entering the oil pumpIncreased oil flow capacity on both the oil feed and scavenge sideAdjustable pressure relief valve can be adjusted with the unit installed in the enginePushrodsQuikee pushrods with chrome pushrod tubesTappetsS&,S premium tappetsTappet CuffsS&,S hard-anodized, black coated tappet cuffs are billet aluminum constructionImprove tappet stability in high-lift, high-rpm situationsCamS&,S 550 cams designed for big bore applicationsValve SpringsS&,S valve springs work with cams up to .605" liftHigh-performance conical single-wire spring designAll necessary gaskets, bearings and hardware for bolt-on installation is includedMade in the U.S.A.Not recommended for Tri-Glide or other three wheel models including conversion due to lugging nature of these bikes.
Color/Finish: Black Granite| Highlighted Fins
Type: Engine
Units: Kit
Bore Size: 4,250"
Cooling System: Oil Cooled
Product Name: Performance Kit
Model: Power Package
Stroke Length: 4,500"
Cam Drive Type: Chain
Compression Ratio: 11,1:1
Displacement: 128"
Base Color: Black
Style: Big Bore
128" Power Package Engine Performance KitBig Bore KitBig-bore bolt-on kit increases 114"/117" with 4-1/2" stroke M-Eight to 128" with no case machining required4-1/4" bore cylinders with 11:1 forged pistonsOil Pump/Cam PlateS&,S oil pump/cam plate with blue anodized finishPassage plugs are removable for servicingIndependent scavenge sections for flywheel cavity and cam chestDebris screen in both scavenge pickupsMagnet in cam chest to help prevent debris from entering the oil pumpIncreased oil flow capacity on both the oil feed and scavenge sideAdjustable pressure relief valve can be adjusted with the unit installed in the enginePushrodsQuikee pushrods with chrome pushrod tubesTappetsS&,S premium tappetsTappet CuffsS&,S hard-anodized, black coated tappet cuffs are billet aluminum constructionImprove tappet stability in high-lift, high-rpm situationsCamS&,S 550 cams designed for big bore applicationsValve SpringsS&,S valve springs work with cams up to .605" liftHigh-performance conical single-wire spring designAll necessary gaskets, bearings and hardware for bolt-on installation is includedMade in the U.S.A.Not recommended for Tri-Glide or other three wheel models including conversion due to lugging nature of these bikes.Color/Finish: Black Granite| Highlighted Fins
Type: Engine
Units: Kit
Bore Size: 4,250"
Cooling System: Oil Cooled
Product Name: Performance Kit
Model: Power Package
Stroke Length: 4,500"
Cam Drive Type: Chain
Compression Ratio: 11,1:1
Displacement: 128"
Base Color: Black
Style: Big Bore
