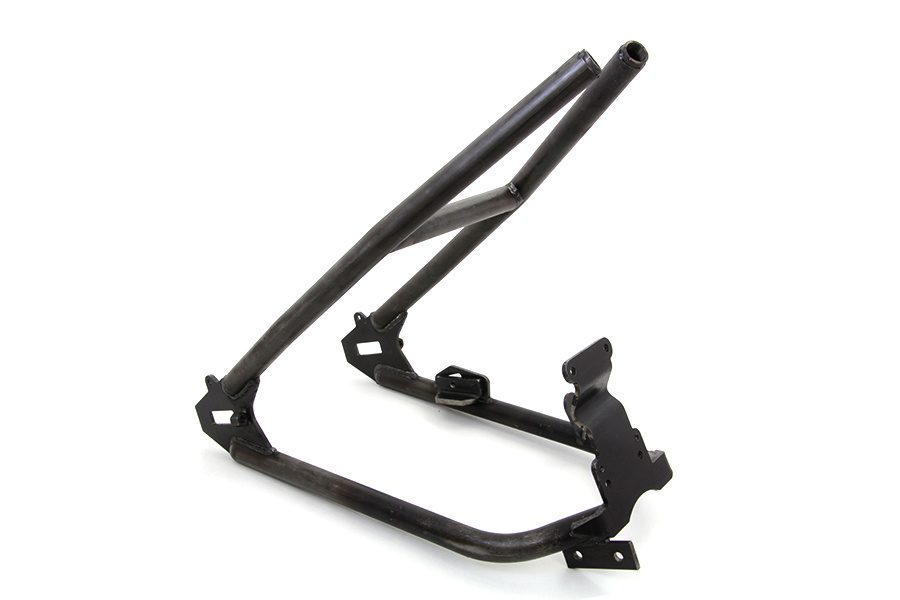

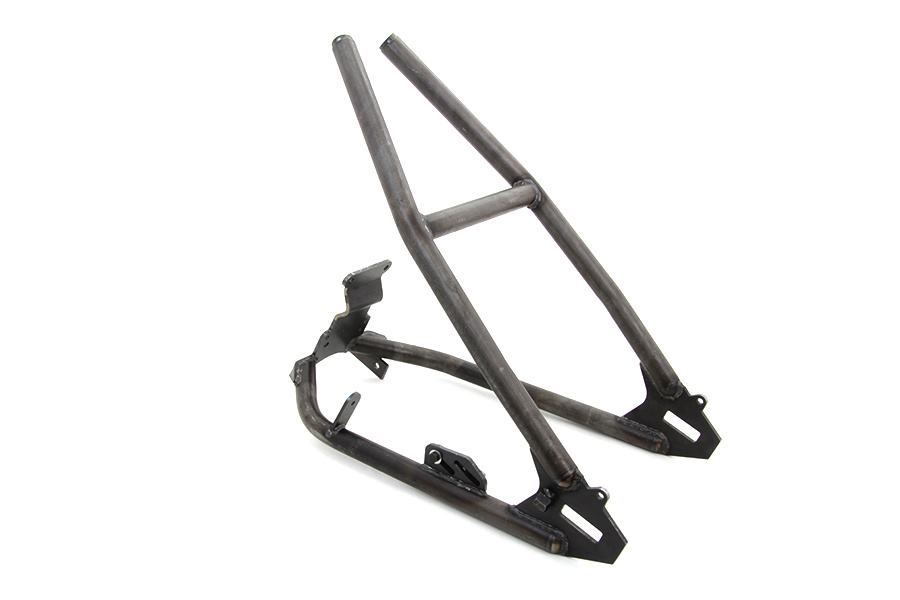

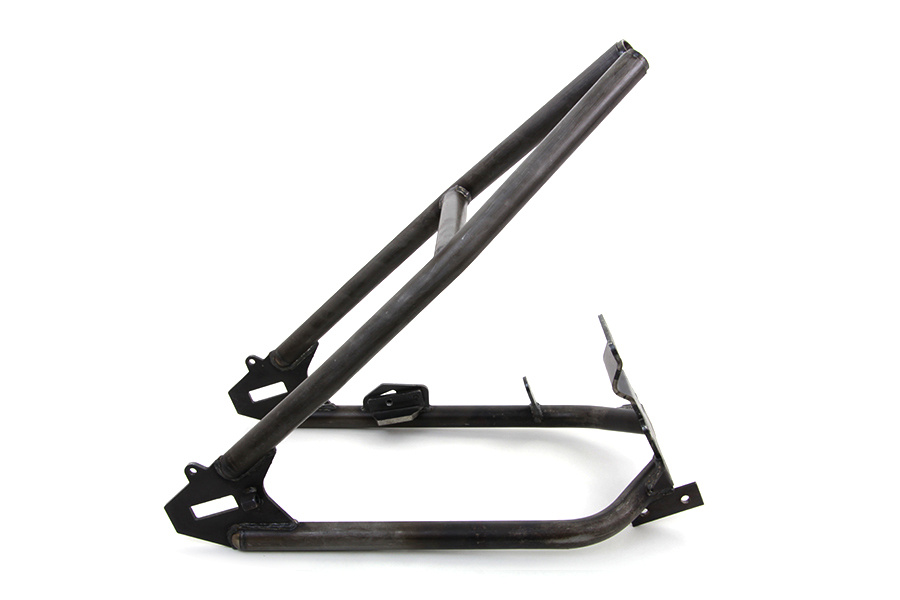

Weld on hardtail with bracket is for stock frames with disc brake. Constructed of 1-1/4" tubing which compliments the original tubing of the stock XL frames.
This hardtail accepts a 14-1/2" long axle with a 3/4" outer diameter and stock rear wheel. The axle plate is welded onto the frame.
DIY hardtailing can be accomplished by qualified welder as rear motor mount plate can be bolted to engine assembly by the (4) mount bolts.
Battery box mount and lower fender brace must be fabricated and installed by welding.
Welding should be performed by a skilled welding technician.
Custom application for 1982-2003 XL. Order rear axle adjusters separately. Suggested to use with top mount oil tank.
This hardtail accepts a 14-1/2" long axle with a 3/4" outer diameter and stock rear wheel. The axle plate is welded onto the frame.
DIY hardtailing can be accomplished by qualified welder as rear motor mount plate can be bolted to engine assembly by the (4) mount bolts.
Battery box mount and lower fender brace must be fabricated and installed by welding.
Welding should be performed by a skilled welding technician.
Custom application for 1982-2003 XL. Order rear axle adjusters separately. Suggested to use with top mount oil tank.
FITS | XL 1982-2003 |
|---|
| UOM | 1 - EA | |||
|---|---|---|---|---|
| Measurements |
|
